Differential Drive Flange (Left Or Right): Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2006 BMW 550i, 2006 BMW 530i, 2006 BMW 525i, 2005 BMW 545i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

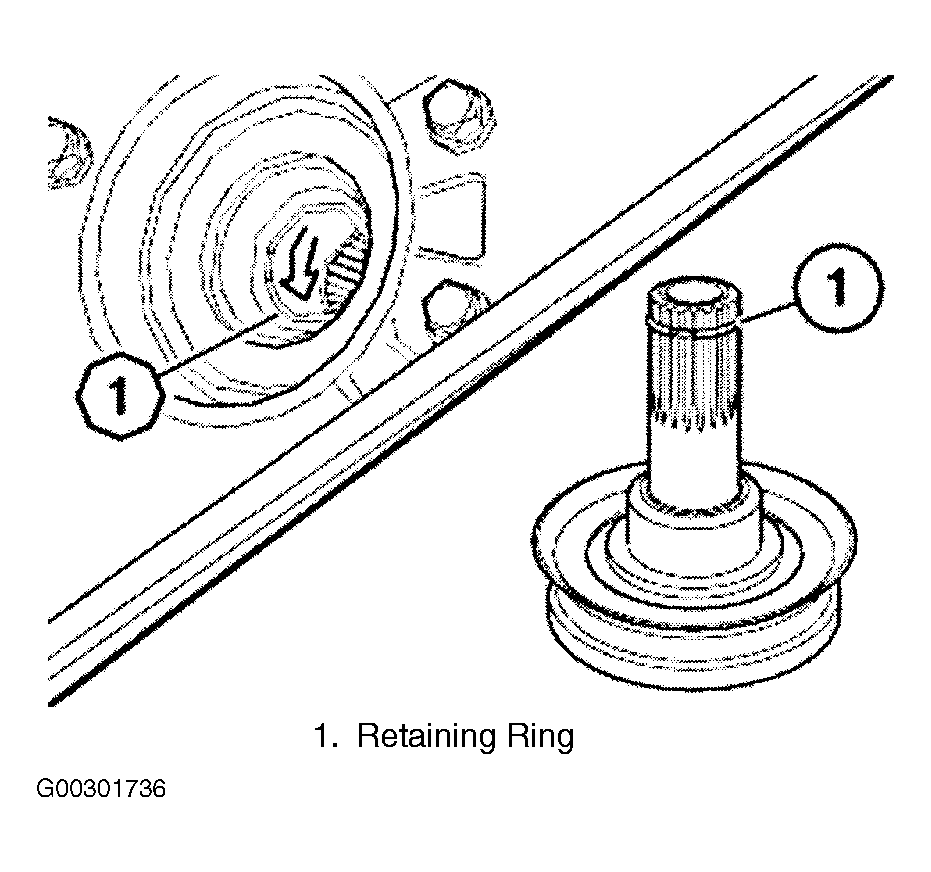

Install retaining ring. Press in drive flange further until retaining ring snaps in place audibly. Insert drive flange and rotate until spline on flange meshes with teeth on differential bevel gear. Coat drive flange at contact face of shaft seal with rear differential oil. Clean shaft seal race on drive flange thoroughly. If the retaining ring was installed in rear differential, twist retaining ring until both ends settle into the groove. See Fig 1 .
