Axle Shafts: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2006 BMW 550i, 2006 BMW 530i, 2006 BMW 525i, 2005 BMW 545i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply hand brake. Unclip hub cover. Unscrew collar nut. See Fig 1 . Remove rear wheel. Remove stabilizer link from stabilizer bar at rear by removing nut. If necessary, grip at Torx socket. Remove stabilizer link from swinging arm by removing nut. If necessary, grip at Torx socket. See Fig 2 . Remove rear spring strut shock absorber from wheel carrier/swinging arm by first removing rear luggage compartment wheel arch trim to access upper nuts. See LUGGAGE COMPARTMENT WHEEL ARCH TRIM  .
  2. Remove top spring strut nuts. See Fig 3 . Support wheel carrier with jack. Remove bolt. See Fig 4 . Lower jack and grip rear spring strut shock firmly and force it off wheel carrier. Guide rear spring strut shock absorber downward between guide arm and control arm. Lift out spring strut. See Fig 5 . Unfasten bolts. See Fig 6 . Cover swinging arm with a cloth. Press axle shaft off drive flange with a small screw driver and place on the cloth. See Fig 7 . Press axle shaft out of drive flange and remove toward center of vehicle.

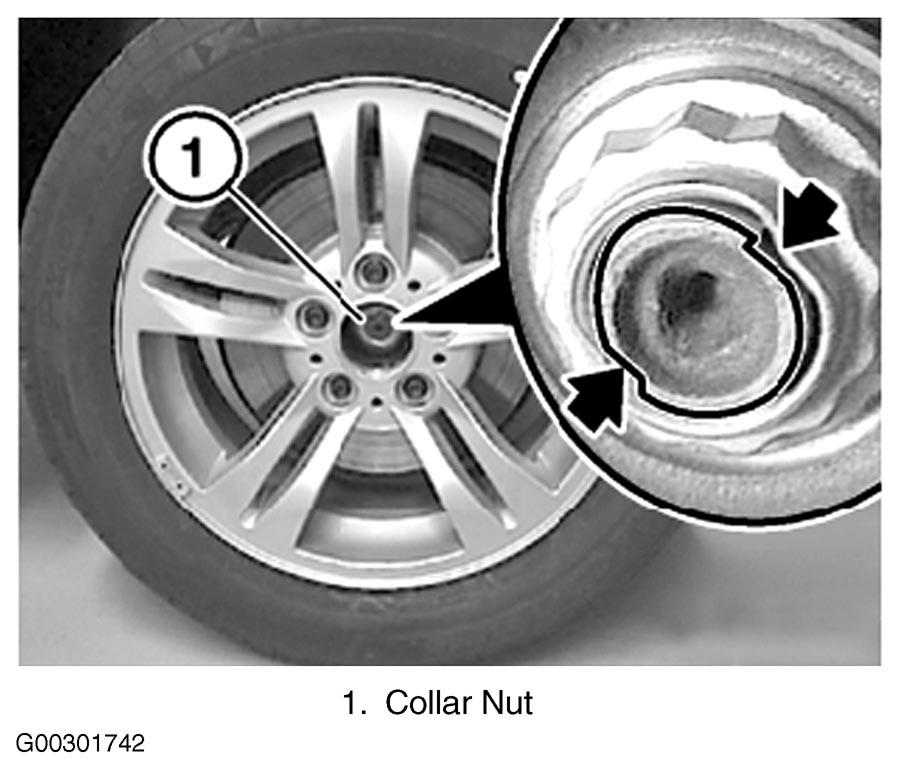

Fig 1: Identifying Collar Nut
G00301742Courtesy of BMW OF NORTH AMERICA, INC.

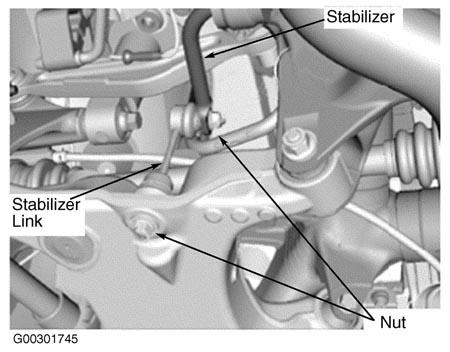

Fig 2: Removing Nuts At Stabilizer & Stabilizer Link
G00301745Courtesy of BMW OF NORTH AMERICA, INC.

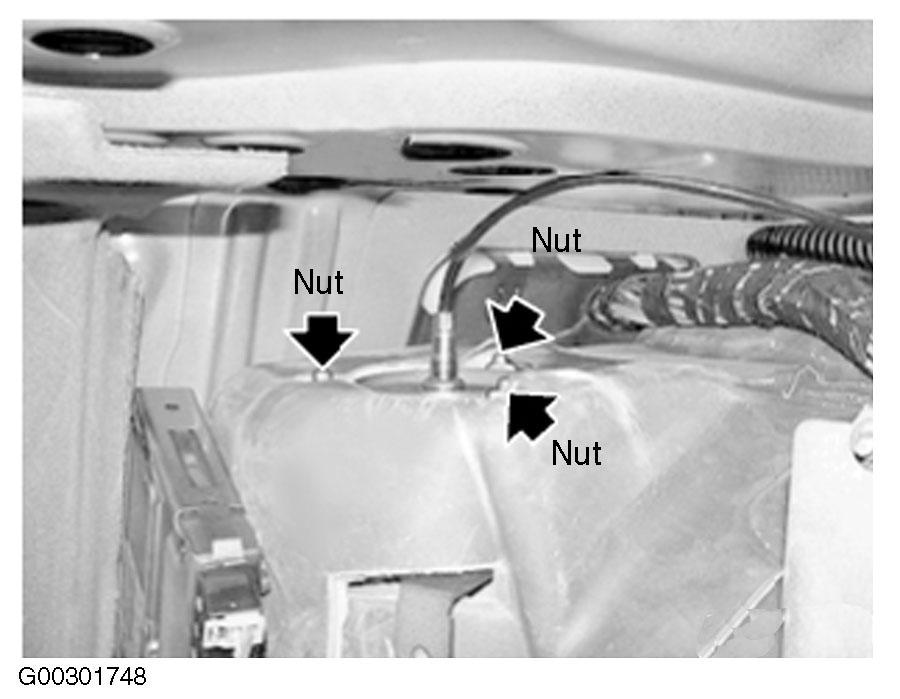

Fig 3: Removing Top Spring Strut Nuts
G00301748Courtesy of BMW OF NORTH AMERICA, INC.

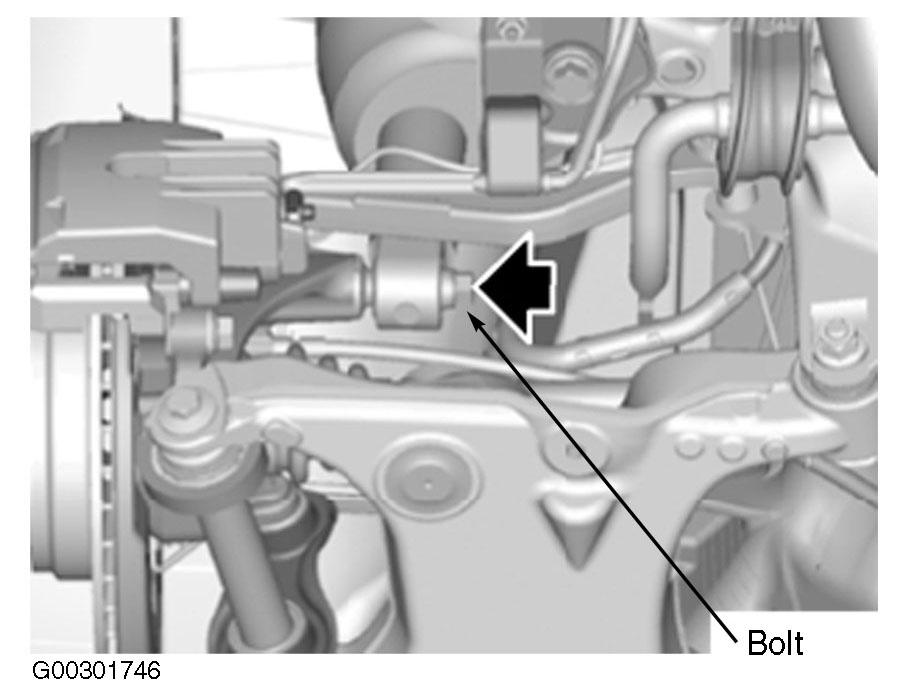

Fig 4: Removing Lower Spring Strut Bolt
G00301746Courtesy of BMW OF NORTH AMERICA, INC.

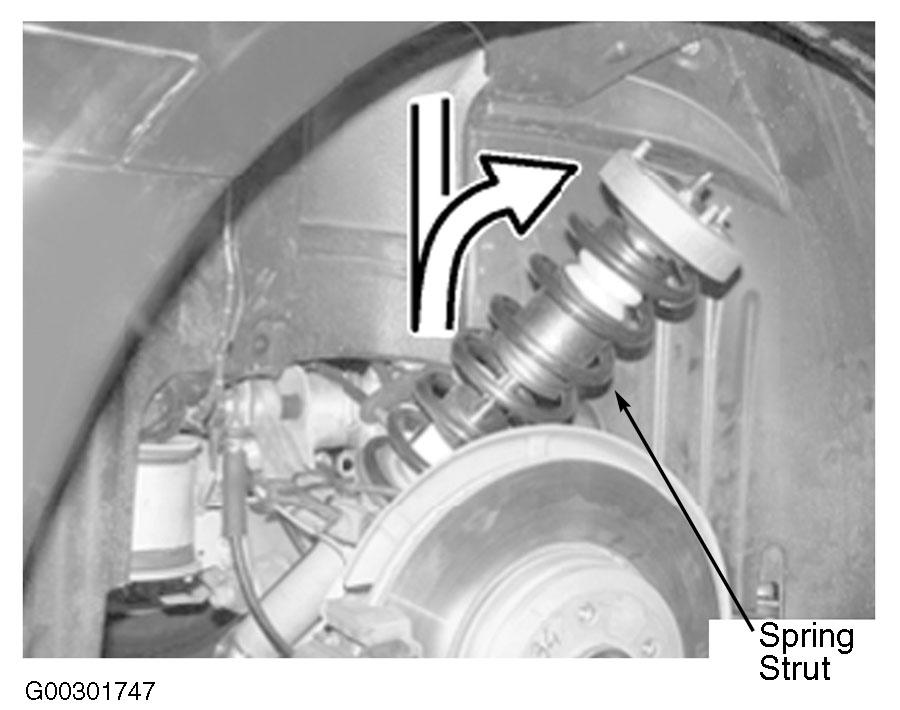

Fig 5: Removing Spring Strut
G00301747Courtesy of BMW OF NORTH AMERICA, INC.

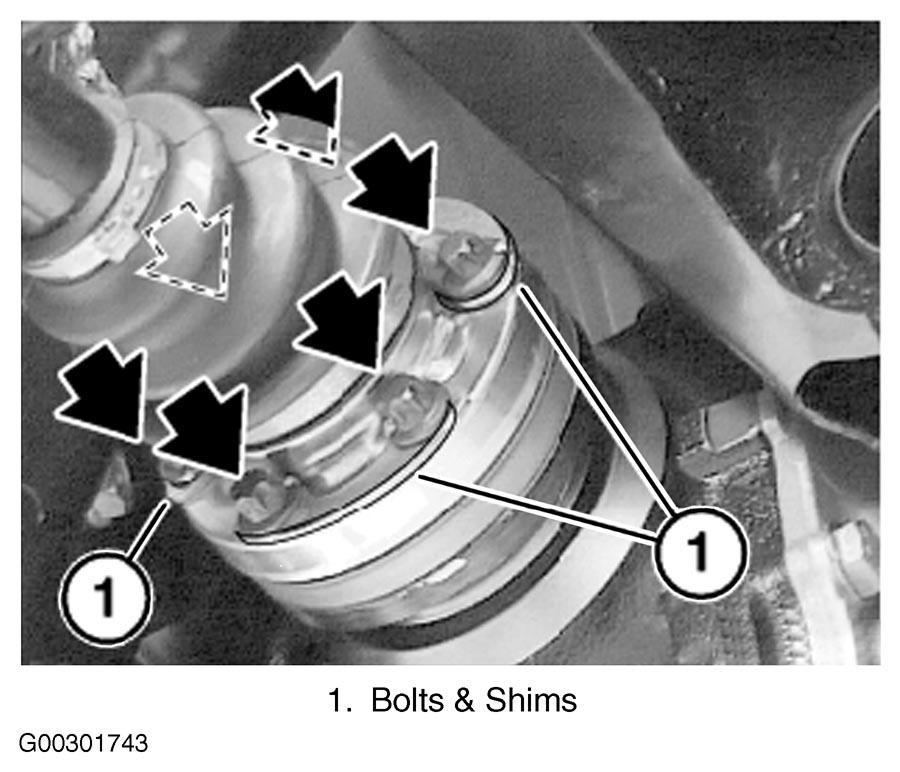

Fig 6: Identifying Bolts & Shims At Axle Shaft
G00301743Courtesy of BMW OF NORTH AMERICA, INC.

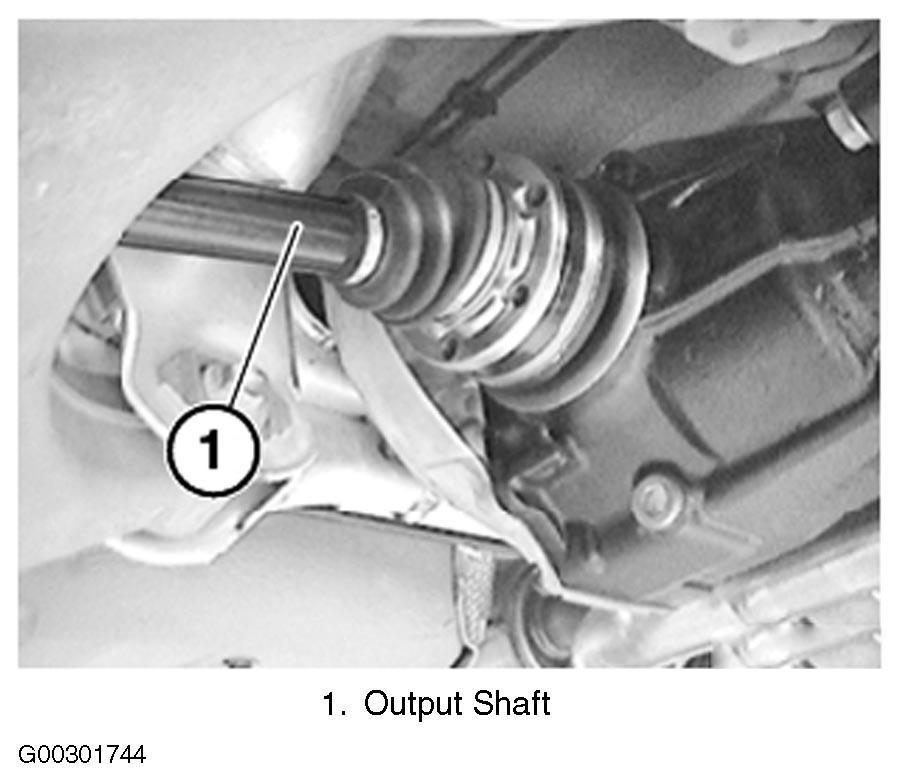

Fig 7: Pressing Axle Shaft Off Drive Flange
G00301744Courtesy of BMW OF NORTH AMERICA, INC.
