Removal & Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2006 BMW 550i, 2006 BMW 530i, 2006 BMW 525i, 2005 BMW 545i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

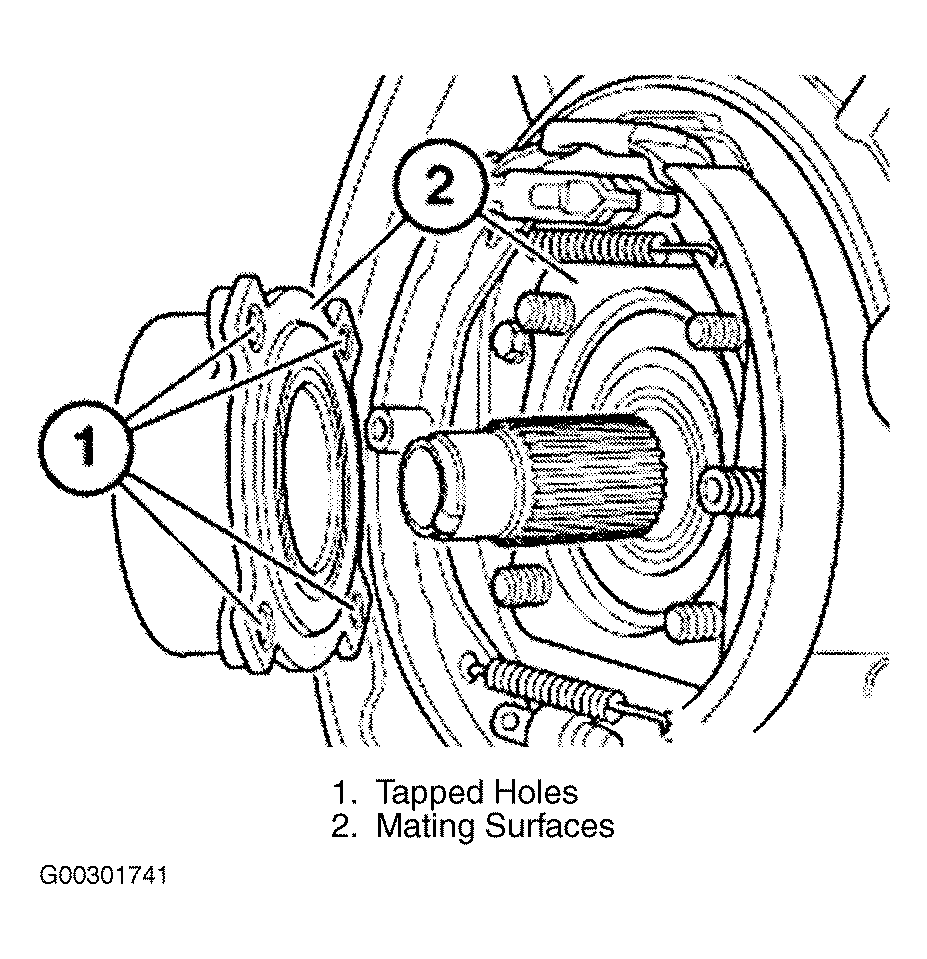

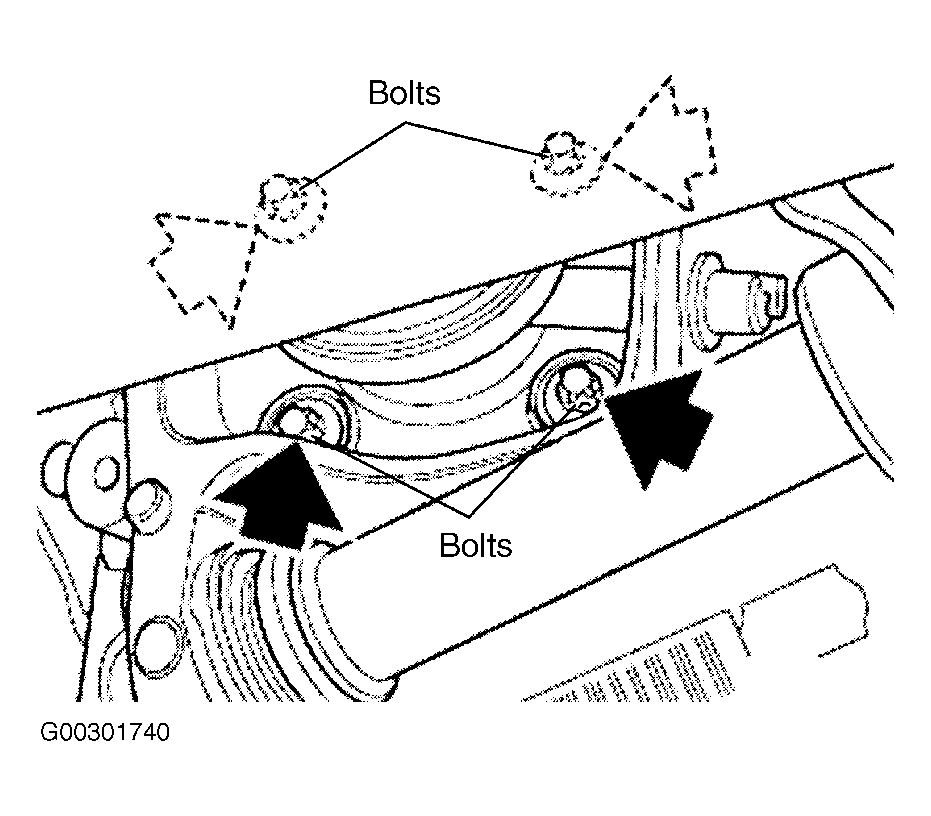

Remove rear axle shaft drive flange. See AXLE SHAFT DRIVE FLANGE . Remove bolts. See Fig 1 . Remove wheel bearing. To install, reverse removal procedure. Use a new wheel bearing. Keep tapped holes and mating surfaces of wheel bearing and wheel carrier clean and free from grease. See Fig 2 .
