32 41 100 Removing And Installing/Replacing Belt Pulley On Vane Pump For Power Steering
WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carry out preliminary work as described in the document "REPLACING DRIVE BELT ".

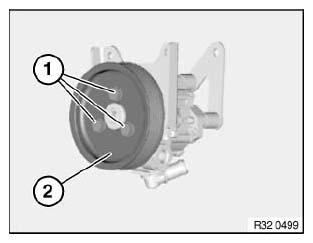

Slacken screws (1)
Relieve tension on DRIVE BELT and remove from belt pulley (2).
Unscrew bolts (1) and remove belt pulley (2).
Installation:
Lettering on belt pulley (2) must point forwards.
Tightening torque: 32 41 14AZ . See PUMP AND OIL SUPPLY for specs.
