52 16 023 Removing And Installing/Replacing Adjusting Unit For Thigh Support On Left Or Right Front Seat

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Move front seat into top position.

Unclip cover (1) with special tool 00 9 325 starting at the inside (arrow).

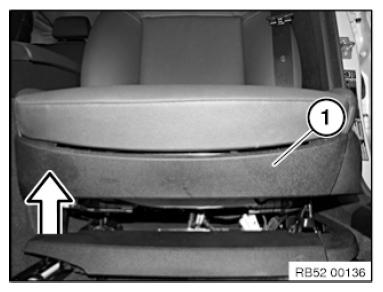

Fig 1: Moving Front Seat Into Top Position

Courtesy of BMW OF NORTH AMERICA, INC.

Fold up and unclip cover (1).

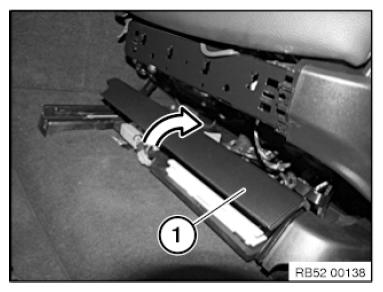

Fig 2: Folding Front Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Move thigh support (1) as far forward as possible.

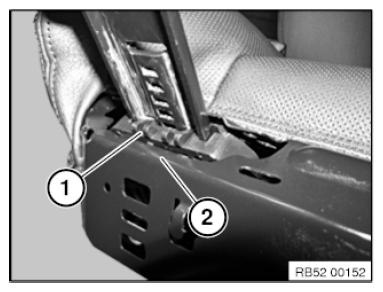

Fig 3: Identifying Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove thigh support upward.

Installation note:

Insert screws (2) with Loctite.

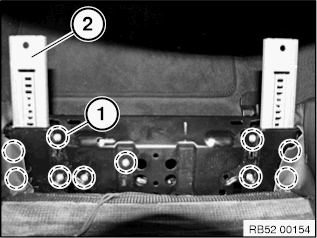

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 5: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out adjusting unit (2) downward.

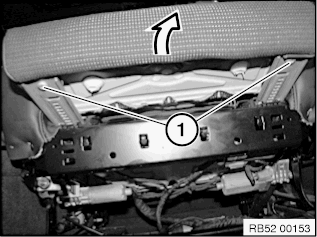

Fig 6: Identifying Screws And Adjusting Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Raise adjusting unit (1) complete with electric motor in direction of arrow and feed out downward.

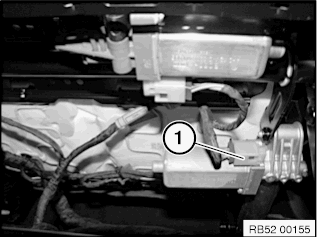

Fig 7: Raising Electric Motor Adjusting Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Adjusting unit (1) must lie flush on facing (2).

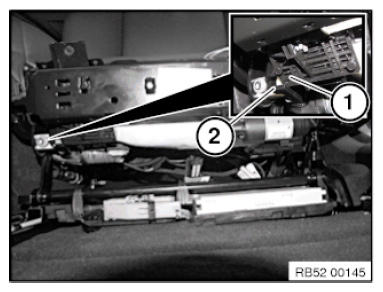

Fig 8: Identifying Electric Motor Adjusting Unit And Facing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure latch mechanism (1) of adjusting frame is correctly on frame (2) (as illustrated).

Fig 9: Identifying Latch Mechanism And Frame

Courtesy of BMW OF NORTH AMERICA, INC.
