33 55 041 Replacing Anti-Roll Bar Link For Anti-Roll Bar On Left Or Right

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Release nut (1); if necessary, grip at Torx socket. Installation note: Replace self-locking nut. Tightening torque, see 33 55 2AZ in 33 55 STABILIZER BAR .

Release nut (2); if necessary, grip at Torx socket. Remove anti-roll bar link. Installation note: Replace self-locking nut. Tightening torque, see 33 55 2AZ in 33 55 STABILIZER BAR .

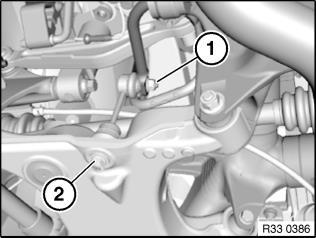

Fig 1: Replacing Anti-Roll Bar Link For Anti-Roll Bar On Left Or Right

Courtesy of BMW OF NORTH AMERICA, INC.
