23 42... Sealing hydraulic unit and actuator block (GS7S47BG SMG)

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRANSMISSION

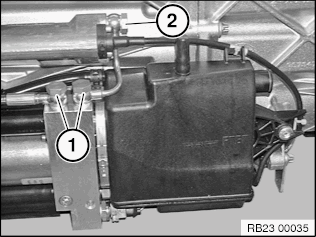

Tighten the banjo bolts (1) on the pump block and banjo bolts (2) an the slave cylinder.

Tightening torque: 25 Nm

Fig 1: Identifying Banjo Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

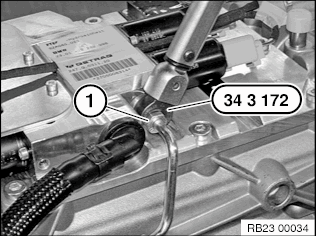

Release union nut (1) from actuator block with special tool 34 3 172 (socket wrench SW 12).

Tightening torque: 11 Nm

Fig 2: Releasing Union Nut From Actuator Block Using Special Tool 34 3 172

Courtesy of BMW OF NORTH AMERICA, INC.
