18 12 045 Replacing center muffler (S85)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard! Only perform these tasks after exhaust system has cooled down.

Necessary preliminary tasks:

Remove complete exhaust system

Using replacement muffler, mark length on faulty center muffler (1). Cut exhaust pipes with special tool 00 2 210 at marked points and deburr.

Fig 1: Mark Length On Faulty Centre Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Connect center muffler to left and right exhaust pipes by means of clamping sleeves.

Connect center muffler to rear muffler by means of clamping sleeve. Install and align exhaust system, tighten down clamping sleeves.

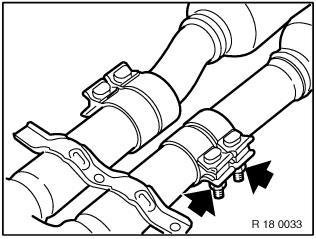

Fig 2: Connect Centre Muffler To Rear Muffler By Means Of Clamping Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
