11 13 000 Removing And Installing Or Replacing Oil Sump (S85)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Recycling:

Catch and dispose of used oil in a suitable container.

Observe country-specific waste-disposal regulations.

Necessary preliminary tasks:

Drain engine oil .
Secure engine in installation position .
Lower FRONT AXLE (M5) or FRONT AXLE (M6) .
Remove ribbed V-belt .
Release 4x transmission bolts.

Release screws (4).

Unfasten hose clip (3).

Remove hose (1).

Unfasten banjo bolt (2).

Installation:

Replace sealing rings.

Tightening torque 11 36 3AZ. See VARIABLE CAMSHAFT CONTROL .

Fig 1: Identifying Hose Clip, Hose And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release oxygen sensor holder (2), remove if necessary.

Fig 2: Identifying Oxygen Sensor Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on heat shield on left and right.

If necessary, remove crankshaft sensor.

Fig 3: Identifying Screw On Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on heat shield on left and right.

Remove heat shield (2) on left and right.

Fig 4: Identifying Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Disconnect plug connection (5).

Release cable from holders (1 and 4).

Release screw (5).

Fig 5: Identifying Plug Connections And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable from bracket (1).

Fig 6: Identifying Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Detach cable from bracket (3).

Release screw (2).

Fig 7: Identifying Plug Connection And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Release screws (1).

Remove VANOS pressure accumulator in direction of arrow.

Fig 8: Removing VANOS Pressure Accumulator

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release screws (3).

Remove belt tensioner (2).

Fig 9: Identifying Belt Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 10: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 11: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows right return pump.
The procedure for the left return pump is identical.

Release screws (1).

Remove electric oil pump (2).

Installation:

Replace O-ring.

Fig 12: Identifying Electric Oil Pump

Courtesy of BMW OF NORTH AMERICA, INC.

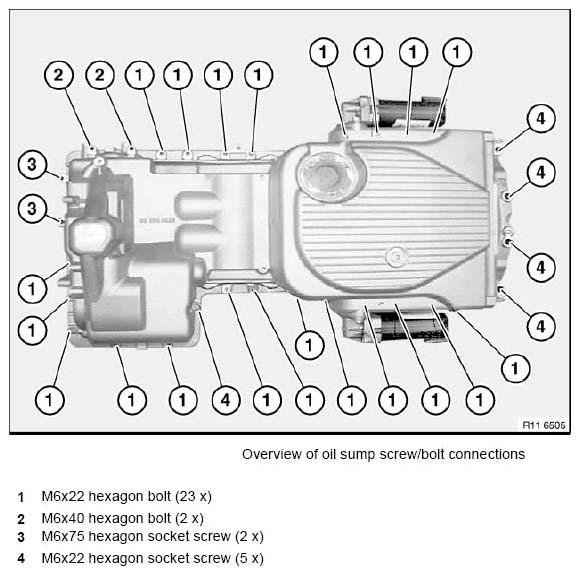

Fig 13: Overview Of Oil Sump Screw/Bolt Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replace oil sump gasket.

Assemble engine.
