BMW Kinematic Diagnosis System
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

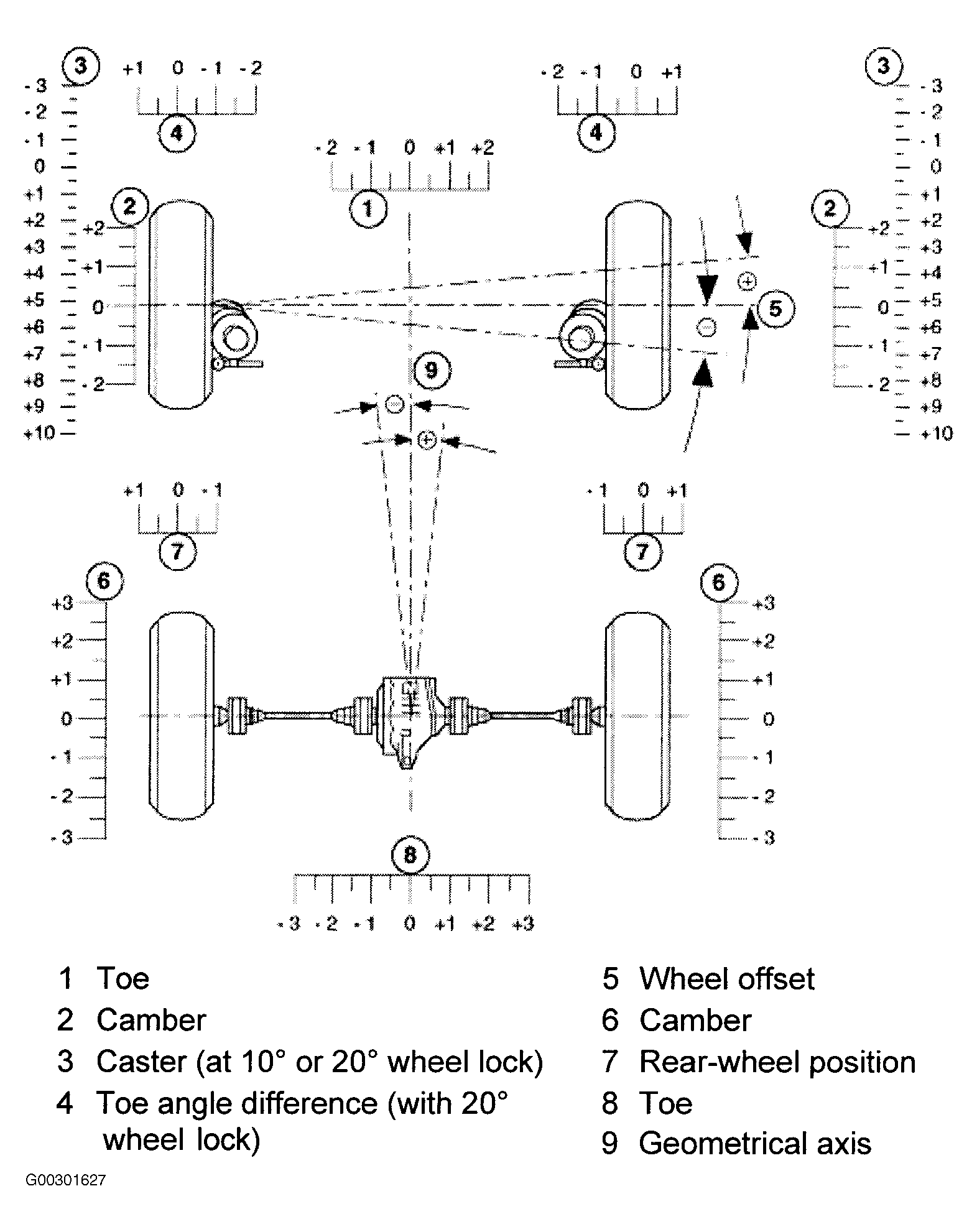

Manufacturer recommends the BMW Kinematic Diagnosis System (KDS) hardware for wheel alignment, which is an integrated part of automotive system concepts. It ensures that work is carried out in a particularly rational manner which is appropriate for BMW requirements. See Fig 1 . System includes the following:
- Kinematic Diagnosis System 1.
- Computer.
- Graphical Tablet.
- Equipment Tablet.
- Remote Display.
- Measuring Sensors With CCD Camera.
- Quick-Acting Clamp.
- Rotating/Sliding Plates.
- Sensor Pins.
- Spoiler Adapter.
- Quick-Clamping Units.
- Retainers.
