Removal & Installation

Move driver or passenger seat to maximum forward position. On left and right rear storage compartments, open lid of storage compartment in direction of arrow. See Fig 1 . Unlock frame and remove. See Fig 2 . Disconnect plug connection. On right rear storage compartment, lift off cover in direction of arrow. See Fig 3 . Unclip retaining bracket and remove. Unlock frame and raise upward. See Fig 4 . Unclip retaining bracket and remove. Remove frame. Feed out emergency unlocking mechanism for luggage compartment lid. See Fig 5 . On left and right rear storage compartment, loosen screws. Lift out storage compartment in direction of arrow. See Fig 6 . To install, reverse removal procedure. Feed journal into openings. See Fig 7 .

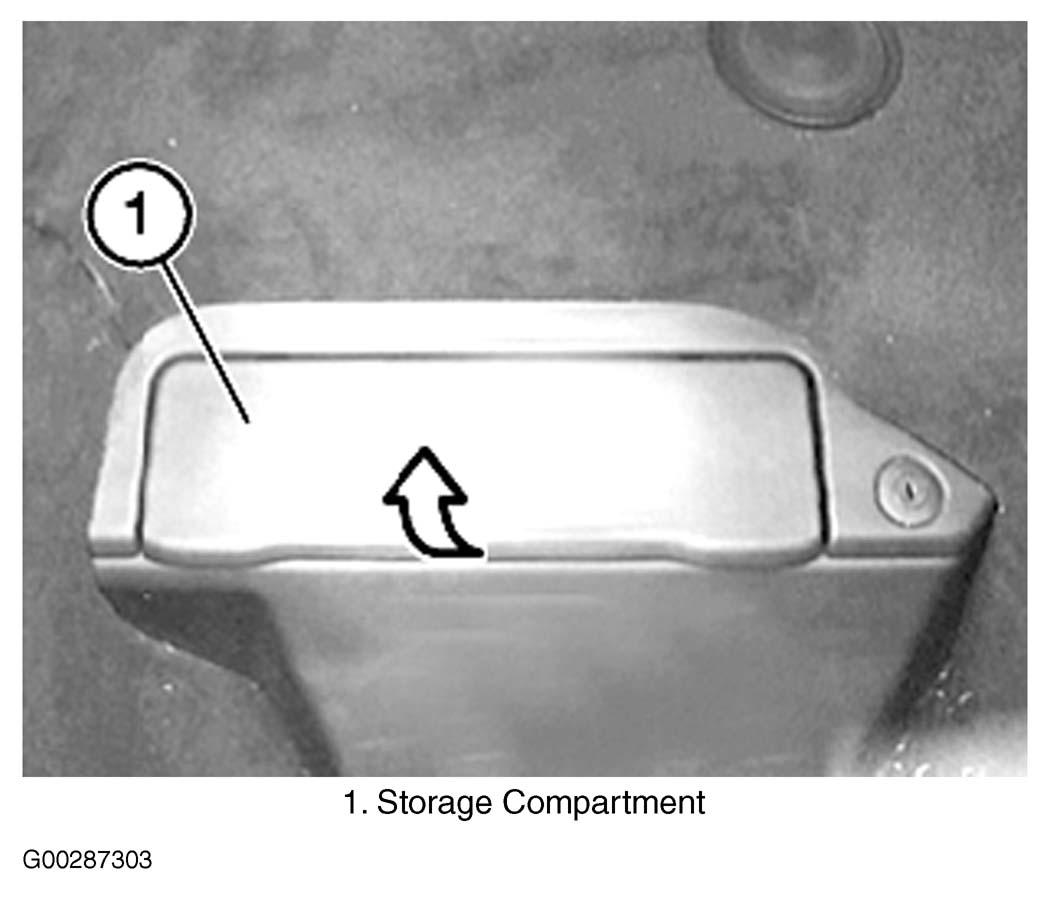

Fig 1: Opening Lid Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

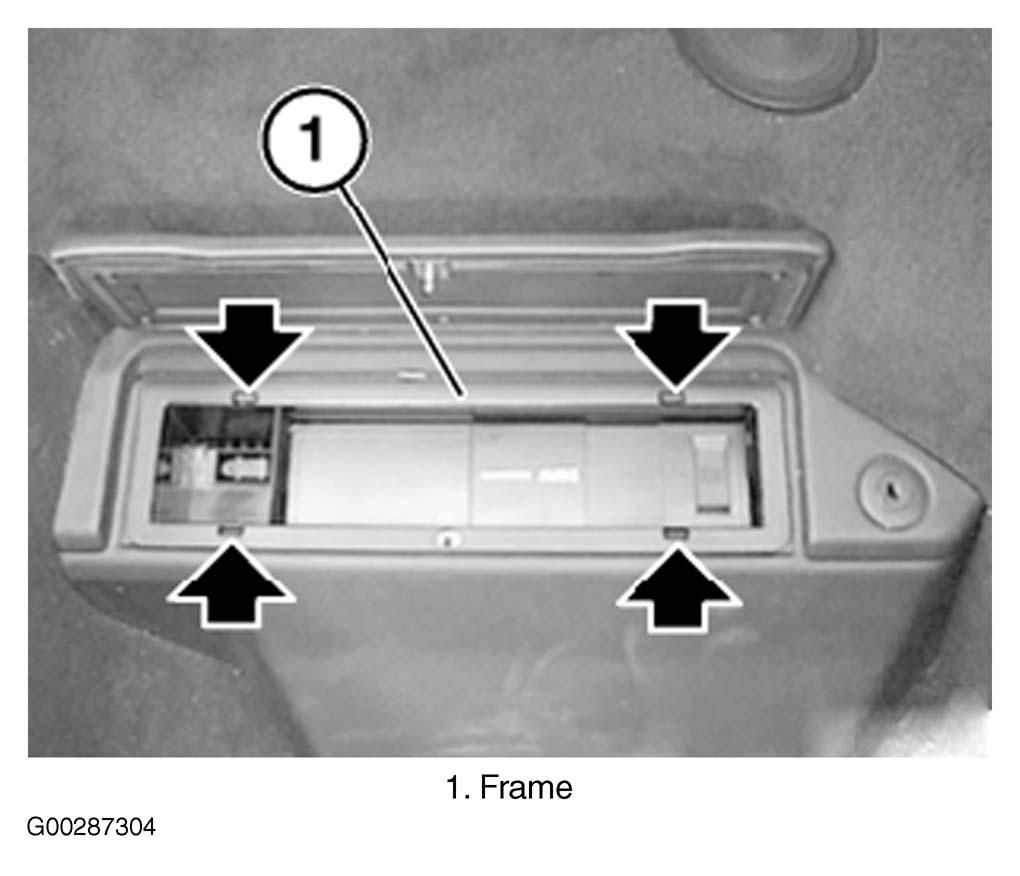

Fig 2: Unlocking Left Side Storage Frame

Courtesy of BMW OF NORTH AMERICA, INC.

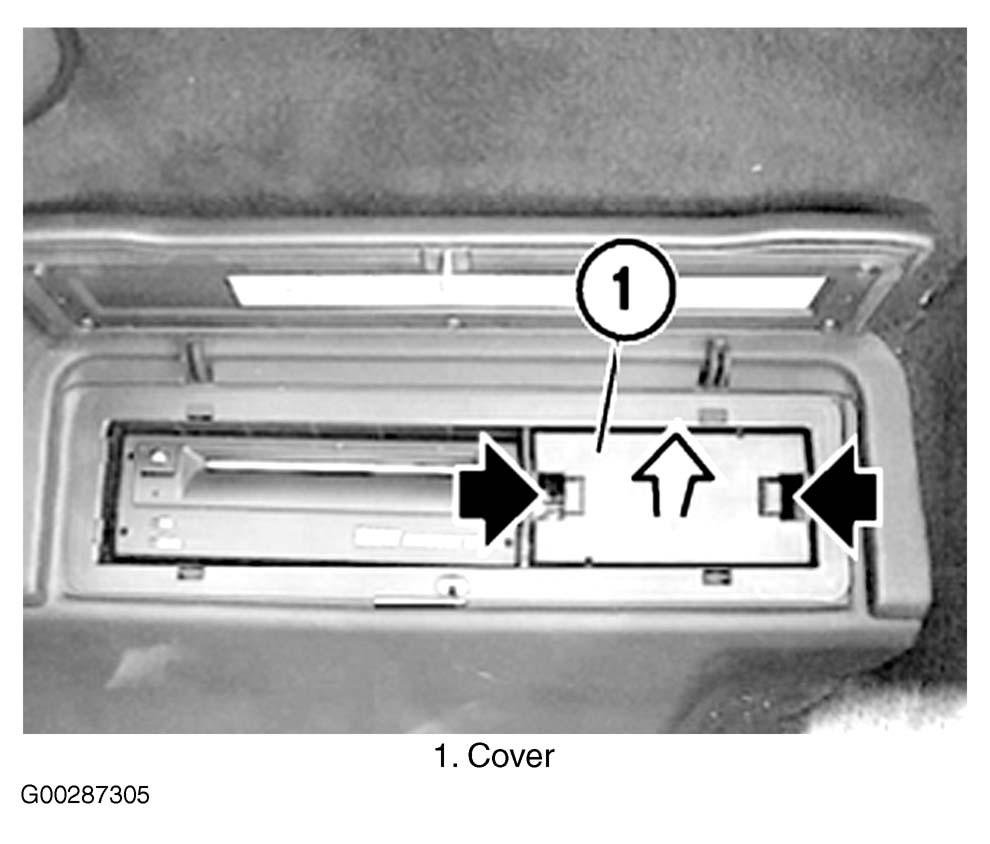

Fig 3: Removing Cover On Right Side

Courtesy of BMW OF NORTH AMERICA, INC.

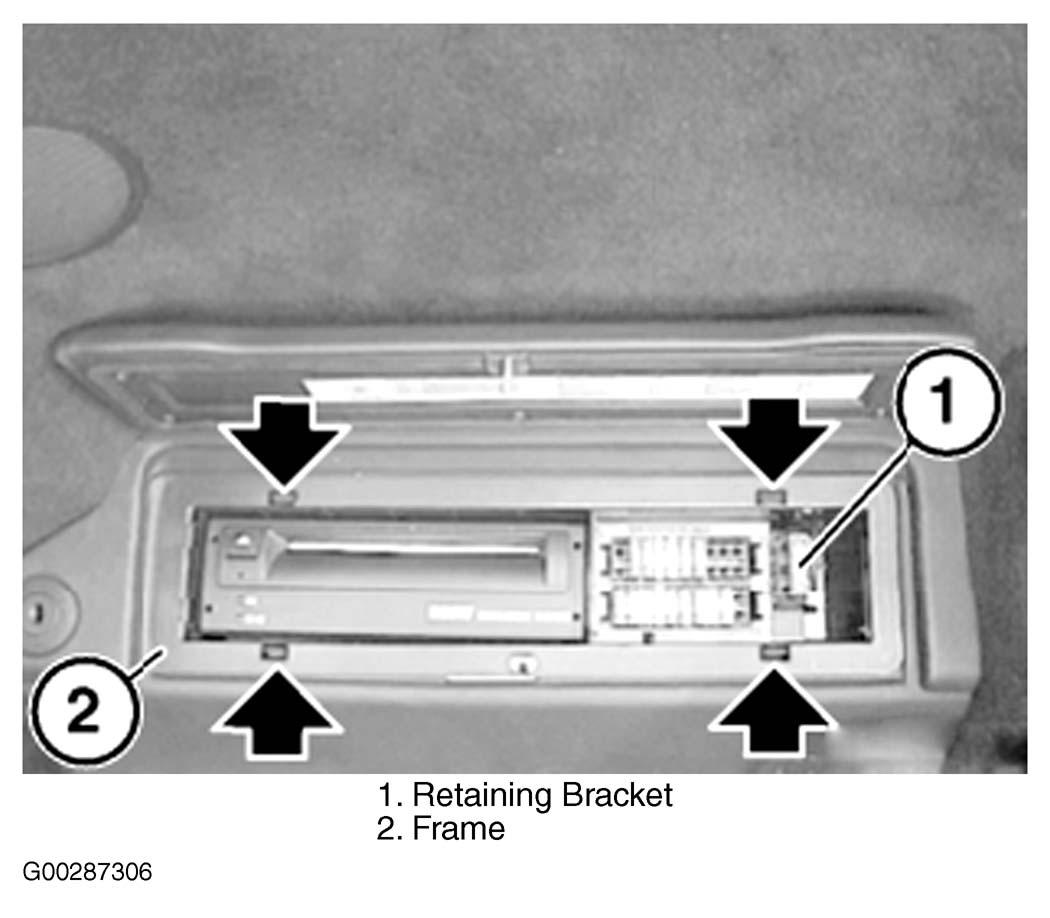

Fig 4: Unclipping Retaining Bracket & Frame

Courtesy of BMW OF NORTH AMERICA, INC.

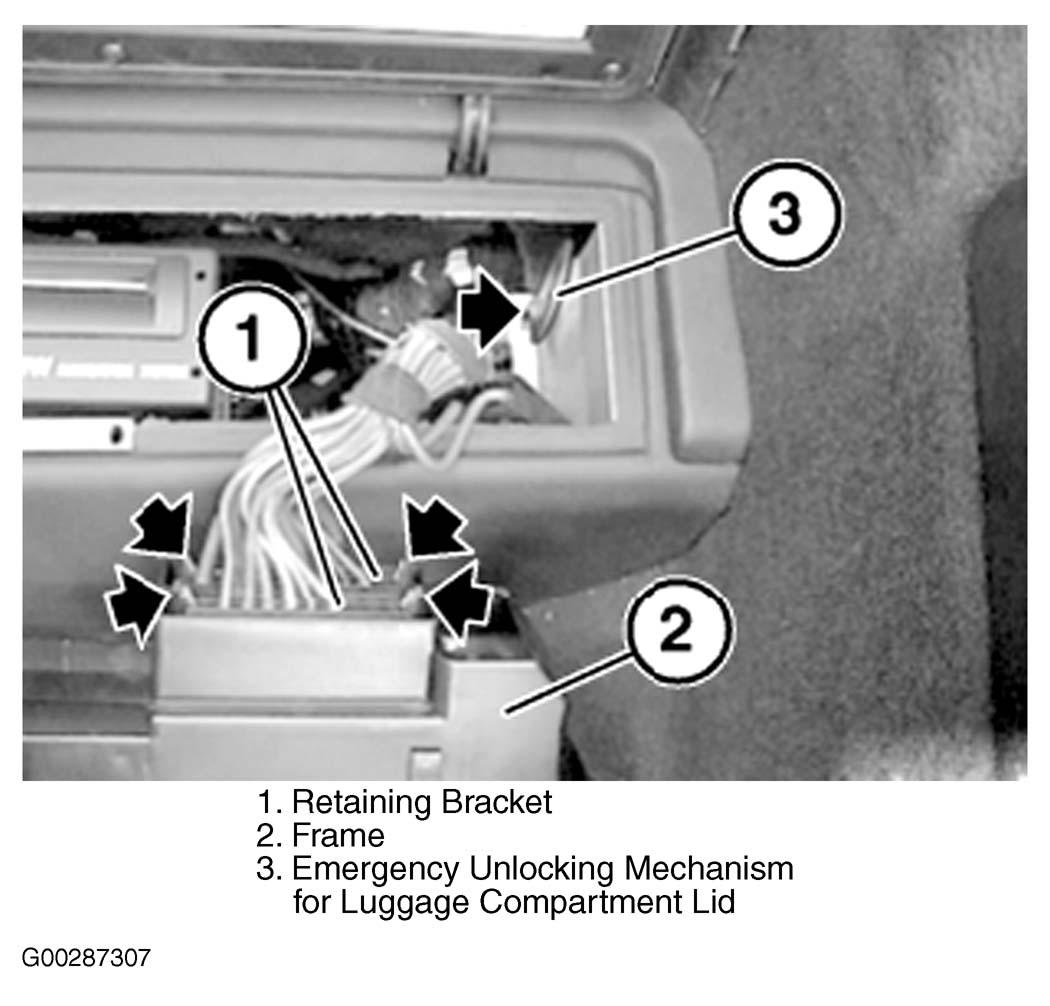

Fig 5: Removing Emergency Unlocking Mechanism For Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

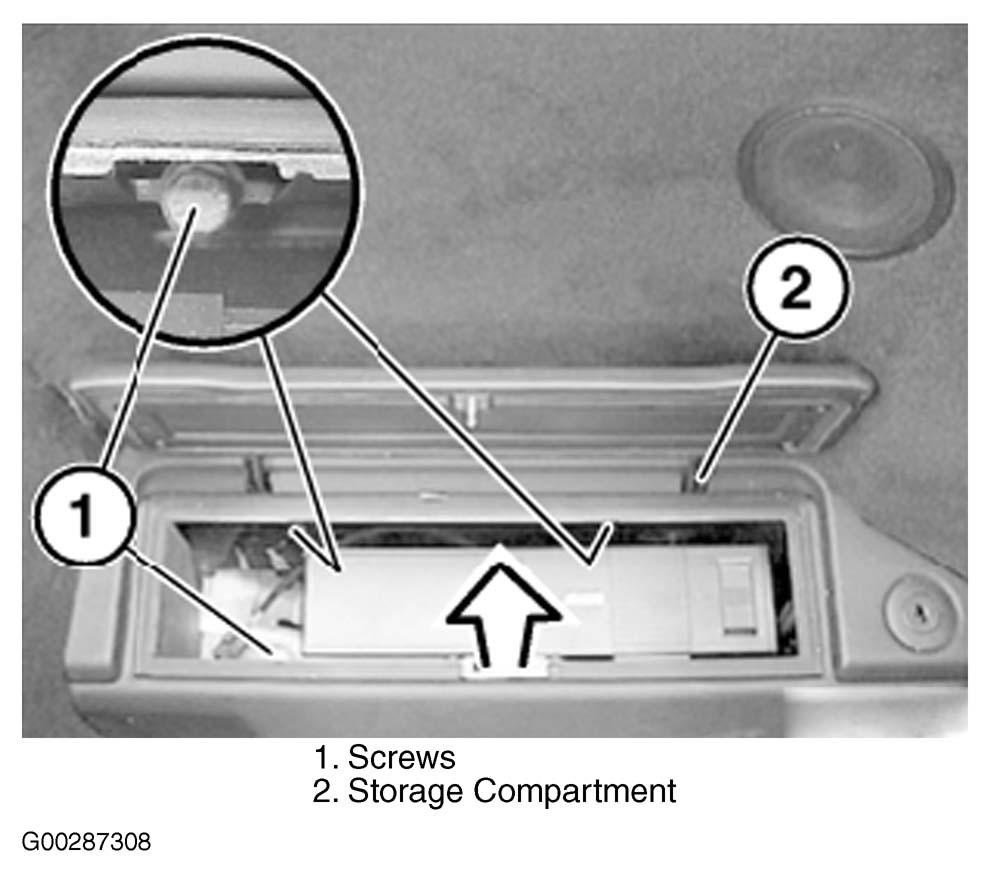

Fig 6: Lifting Out Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

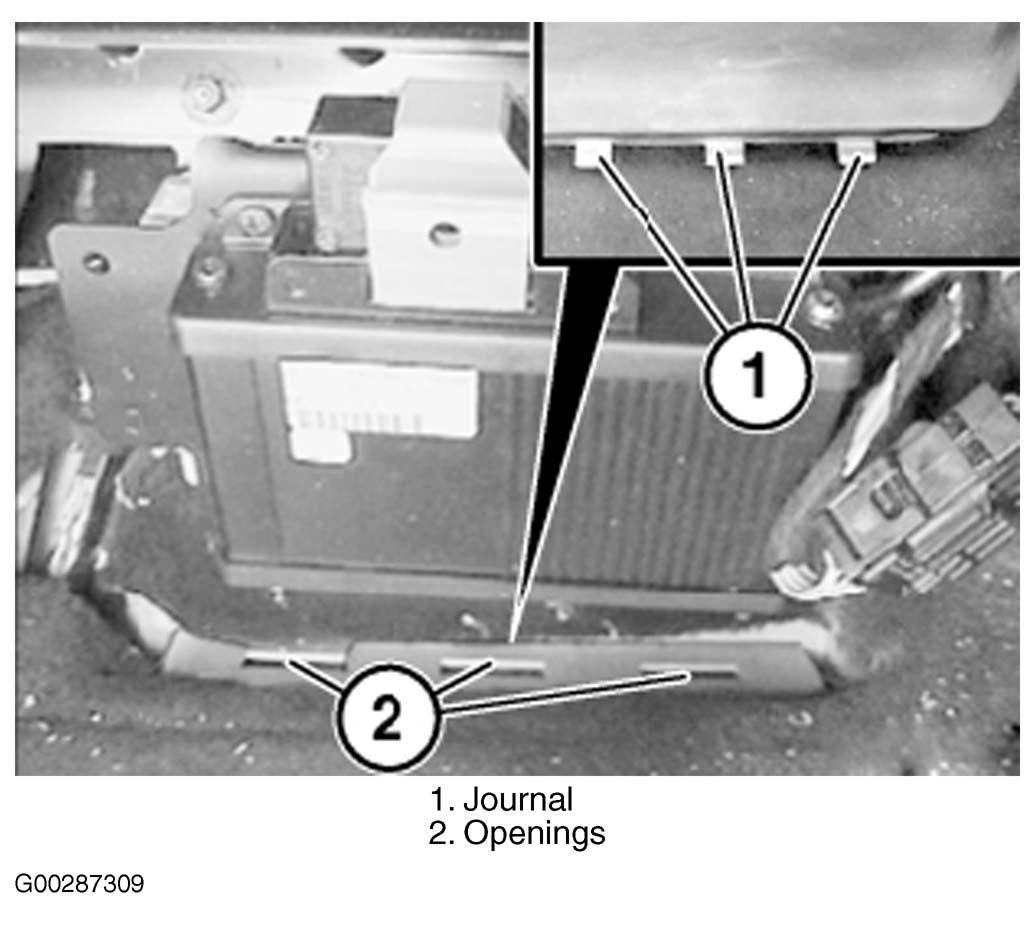

Fig 7: Feeding Journal Into Openings

Courtesy of BMW OF NORTH AMERICA, INC.
