Removal & Installation

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Pull off seal at rear center in area of rain gutter trim. Remove expansion rivets. Remove rain gutter trim at rear center in direction of arrow. See Fig 1 . Unclip cable. Detach plug connection in direction of arrow and disconnect. Remove screws. See Fig 2 . Unclip rear window frame on left and right and remove in direction of arrow. SeeFig 3 . Remove auxiliary brake light in direction of arrow. See Fig 4 . To install, reverse removal procedure. If necessary, replace faulty clips.

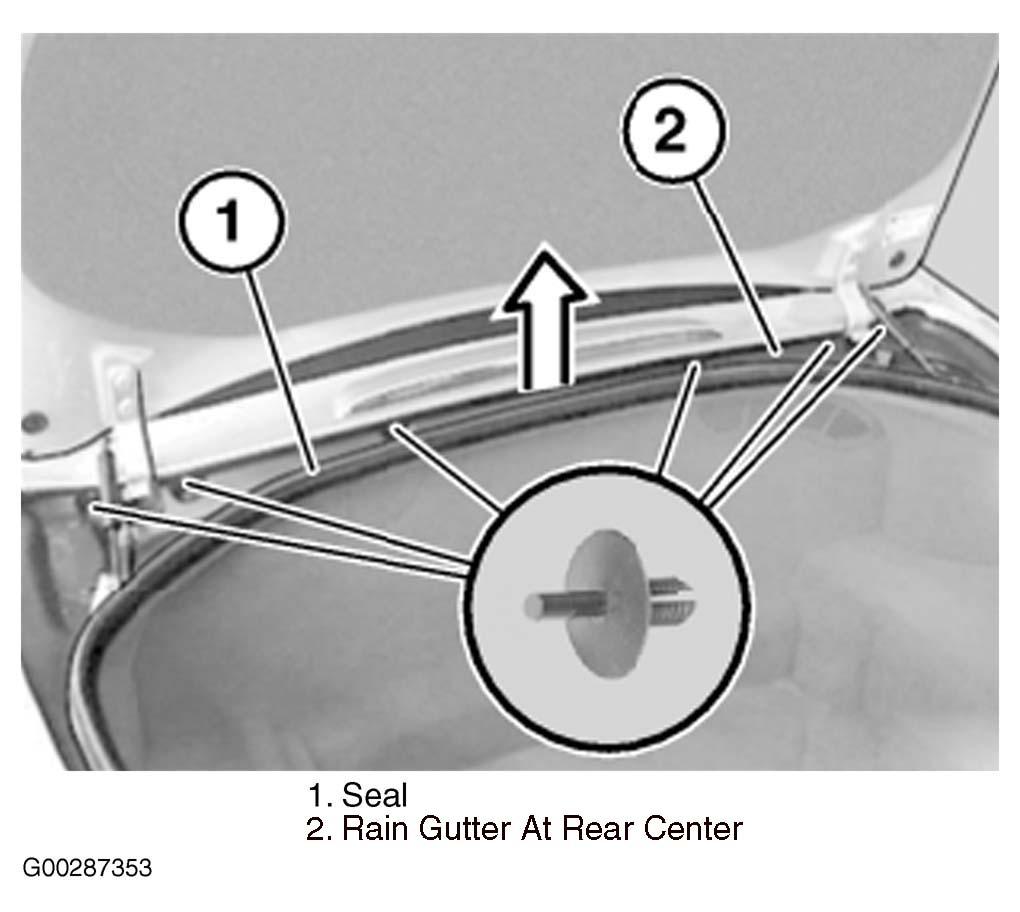

Fig 1: Removing Rain Gutter Trim

Courtesy of BMW OF NORTH AMERICA, INC.

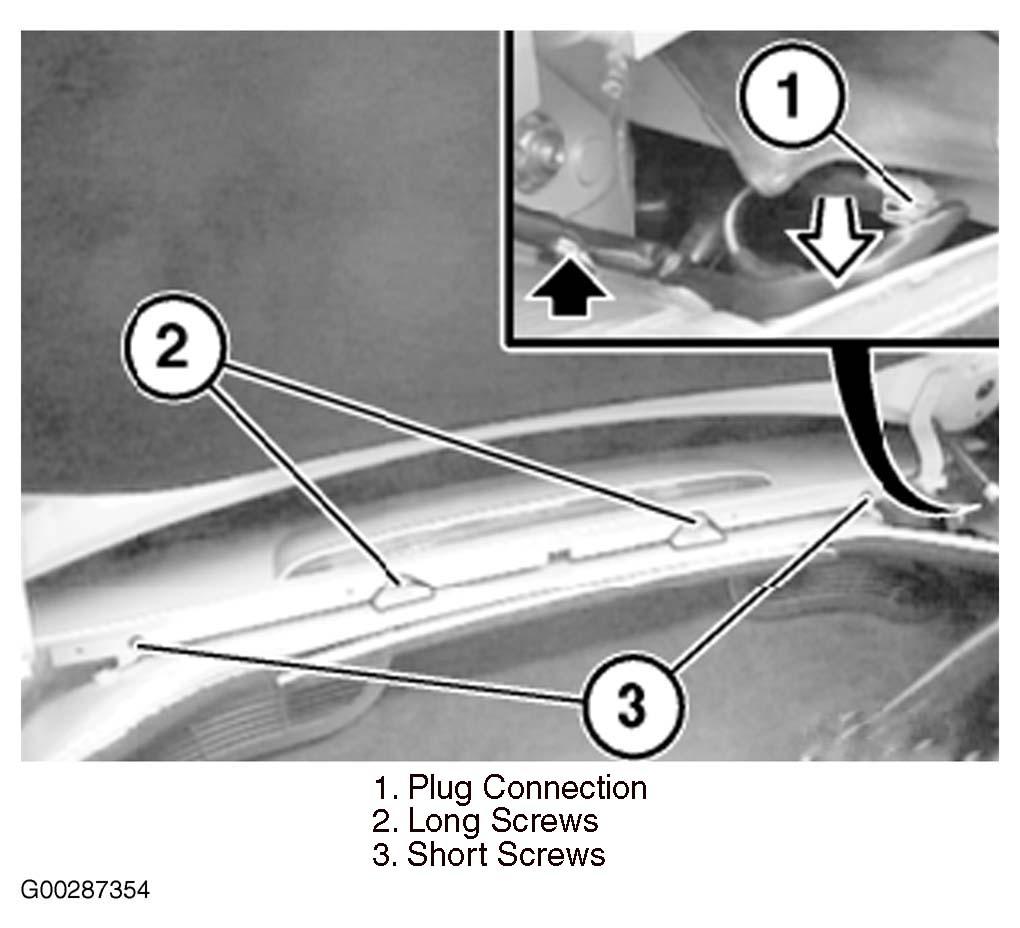

Fig 2: Removing Screws No. 2 & 3

Courtesy of BMW OF NORTH AMERICA, INC.

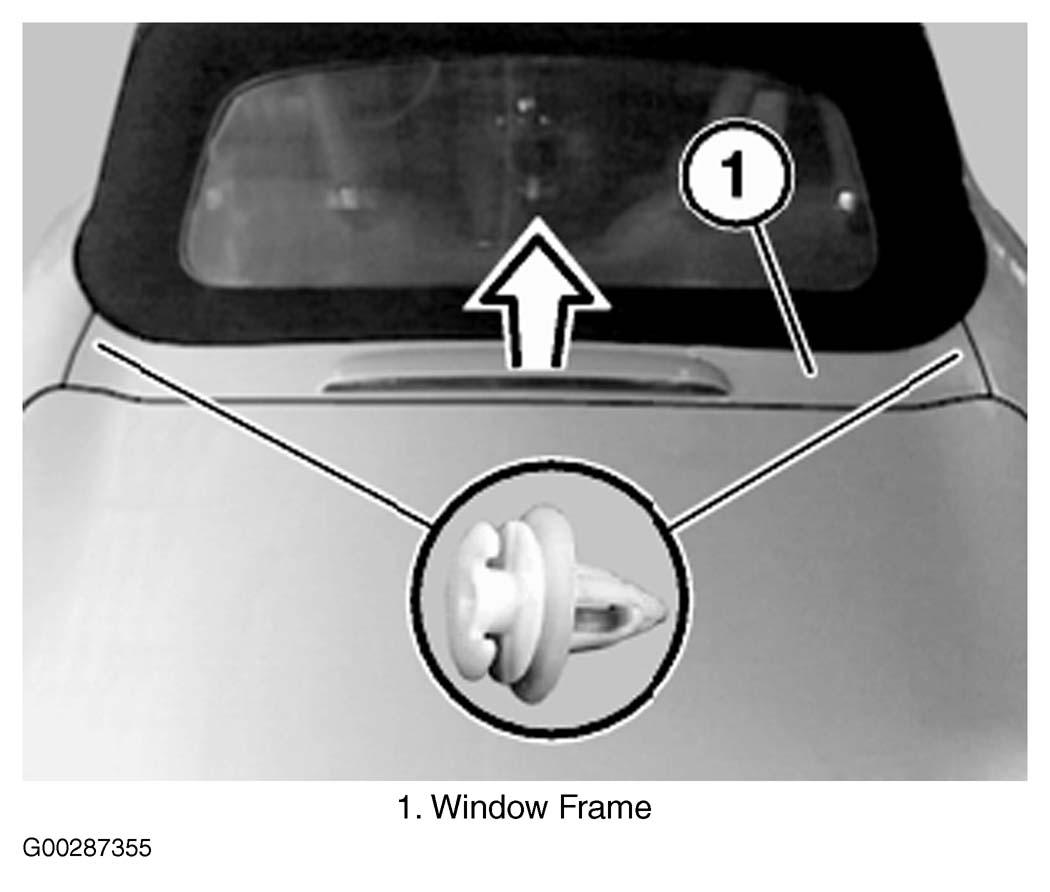

Fig 3: Unclipping Rear Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

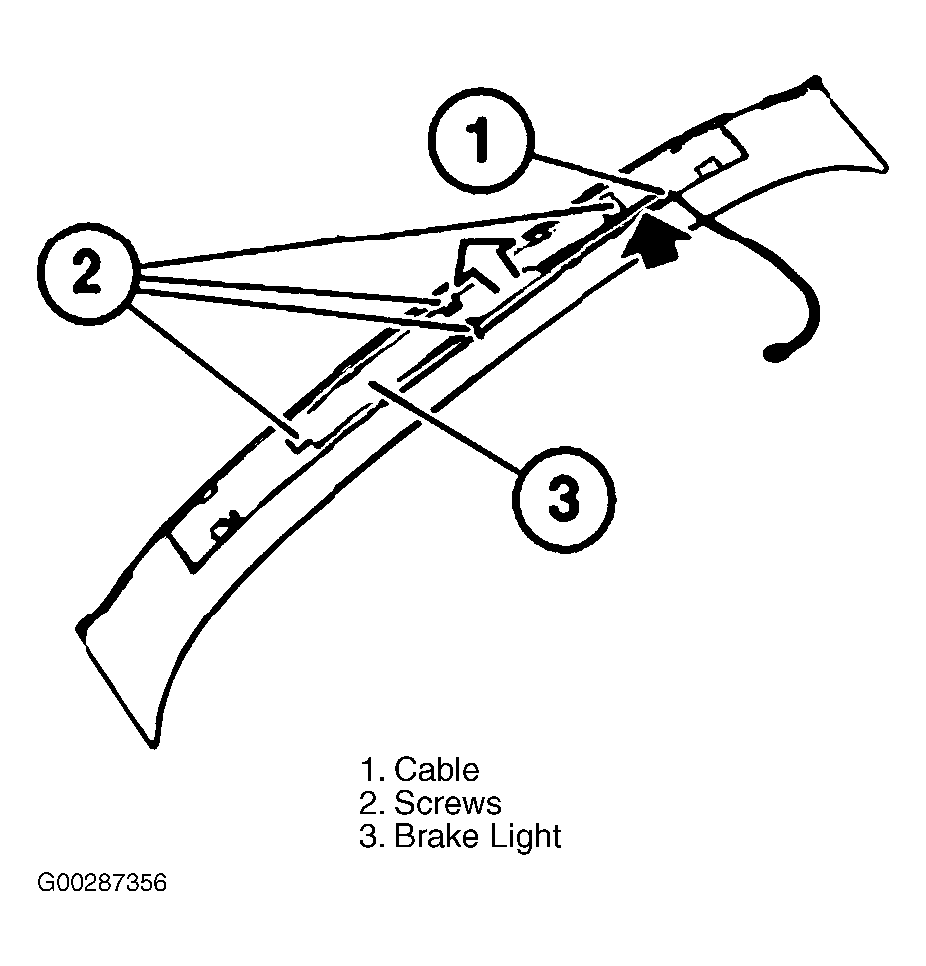

Fig 4: Removing Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.
