Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Open glove box. Press on glove box locks and continue to fold glove box down and remove.
Unclip glove box at both pivot bearings and remove glove box. Unlock and disconnect knee air bag module connector. Remove 6 knee air bag module mounting screws. See Fig 2 . Feed knee air bag module in direction of arrow out through glove box opening.
To install, reverse removal procedure. Use NEW knee air bag module mounting screws and tighten to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

Fig 1: Identifying Driver-side Knee Air Bag Module

Courtesy of BMW OF NORTH AMERICA, INC.

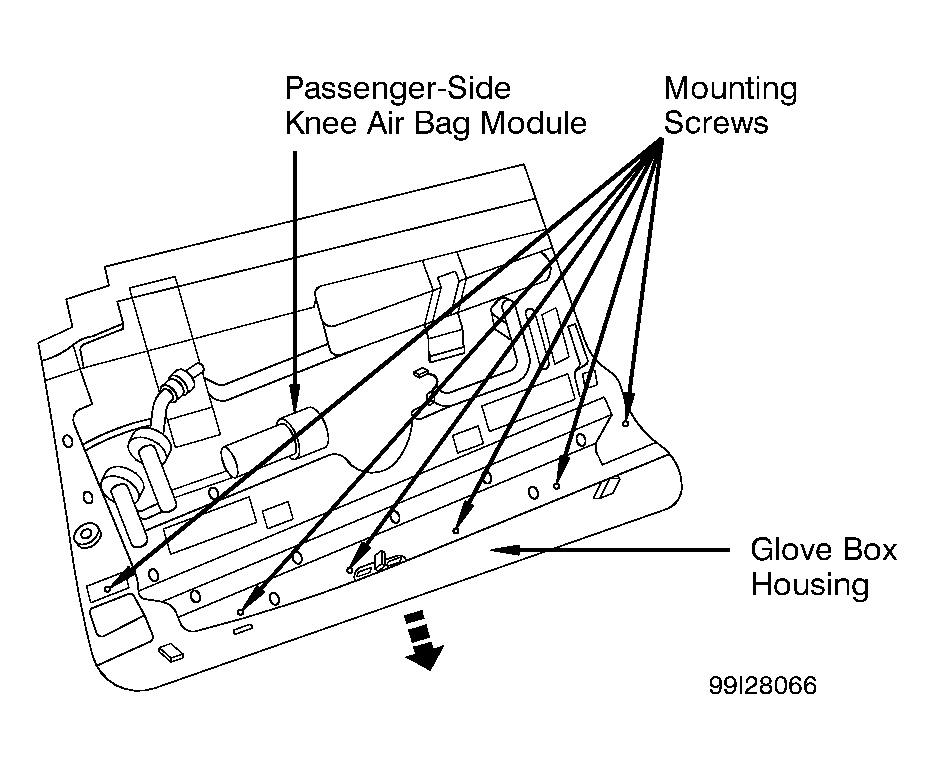

Fig 2: Identifying Passenger-side Knee Air Bag Module

Courtesy of BMW OF NORTH AMERICA, INC.
