00 9 130 Magnet with 1/2" connection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 00 9 120

Note: For securing angle-of-rotation disk 00 9 120 to body.

Series: E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E70, E81, E83, E85, E86, E87, E90, E91, E92

SI number: 1 17 04 (130)

Order number: 00 9 130

Magnet with 1/2" connection

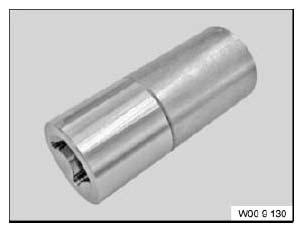

Fig 1: Identifying Magnet With 1/2" Connection
G04745058Courtesy of BMW OF NORTH AMERICA, INC.
