00 2 300 Assembly stand with universal flange

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For accommodating engines from S85

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42 M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45 N46, N51, N52, N53, N54, N62, N62TU, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

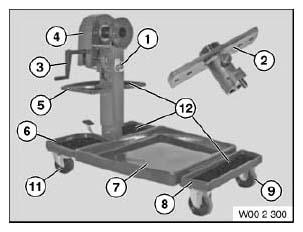

Fig 1: Identifying Assembly Stand With Universal Flange

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 01 25 04 (155)

Order number: 00 2 300

Assembly stand with universal flange

Consisting of:

1 = 00 2 301 Assembly stand

2 = 00 2 302 Universal flange

3 = 00 2 303 Crank

4 = 00 2 304 Protection hood

5 = 00 2 305 Storage for small parts

6 = 00 2 306 Molded tray, rear

7 = 00 2 307 Oil drip tray

8 = 00 2 308 Molded tray, front

9 = 00 2 309 Wheel, front (without stop)

10 = 00 2 311 Wheel, rear (with stop)

11 = 00 2 312 Set of rippled mats
