00 00 ... Steering components: checking for zero clearance, leaks, damage and wear

Checking play:

• For hydraulically assisted steering systems, the engine must be running
• For electrically assisted steering systems, the ignition must be on
• Steering wheel:

  Move steering wheel back and forth and check for play

• Tie rod joint:

  There must no clearance between tie rod arm (2) and tie rod joint (1).

  Fig 1: Identifying Tie Rod Arm And Tie Rod Joint

  Courtesy of BMW OF NORTH AMERICA, INC.

Checking for leaks:

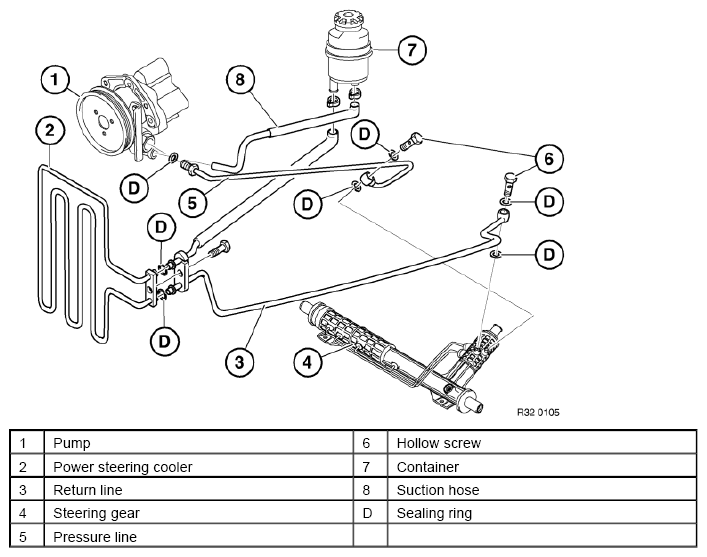

The following illustration shows the arrangement of the power steering components and lines.

Fig 2: Identifying Power Steering Components

Courtesy of BMW OF NORTH AMERICA, INC.

Check all visible connections, hoses, lines and steering gear for traces of fluid.

Checking for damage and wear:

Check gaiters, flexible disc and axle and tie rod sleeves for damage (e.g. cracks, holes), for leaks or missing clamping bands on gaiters.
