1.3.2 Correction of the Segment Time ts(n) (%DMDFOF)

The adaptation during fuel cut-off learns systematic differences of the segment times between the individual segments and uses the determined correction values to compensate segment specific variations. After the adaptation, the segment periods are nearly identical apart from the stochastic signal noise in the steadystate case.

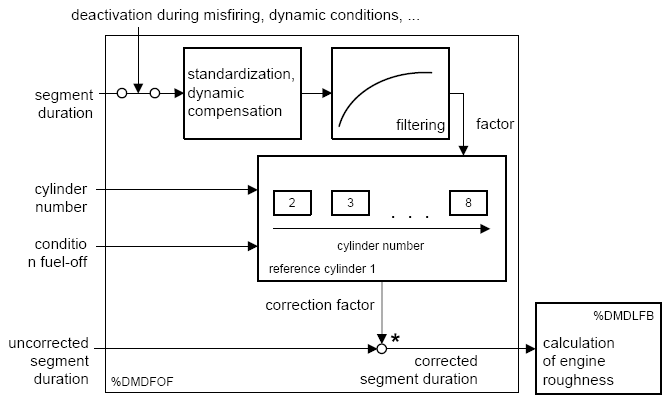

Fig 1: Fuel-Off Adaptation Misfire Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
