1.19.1 For model 550i

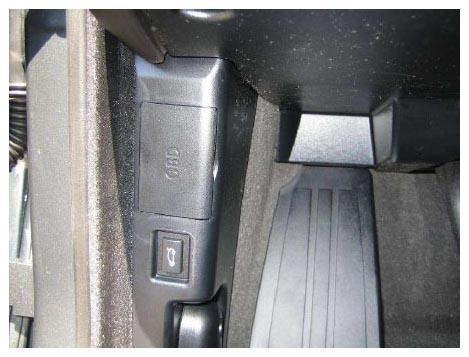

Fig 1: Positioning DLC For 5 Series And Closed Cover
G06466962Courtesy of BMW OF NORTH AMERICA, INC.

The DLC is located at the lower left A-pillar and under a cover. This cover has the letters OBD on it.
