1.16 Listing of DME input and output signals

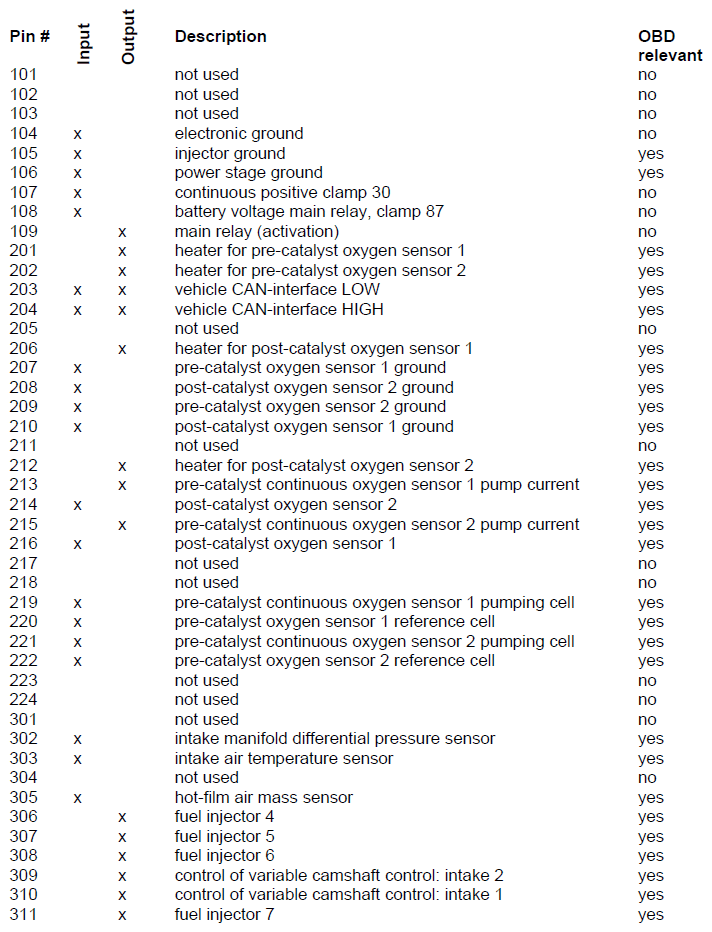

Fig 1: DME Input And Output Signals Chart (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

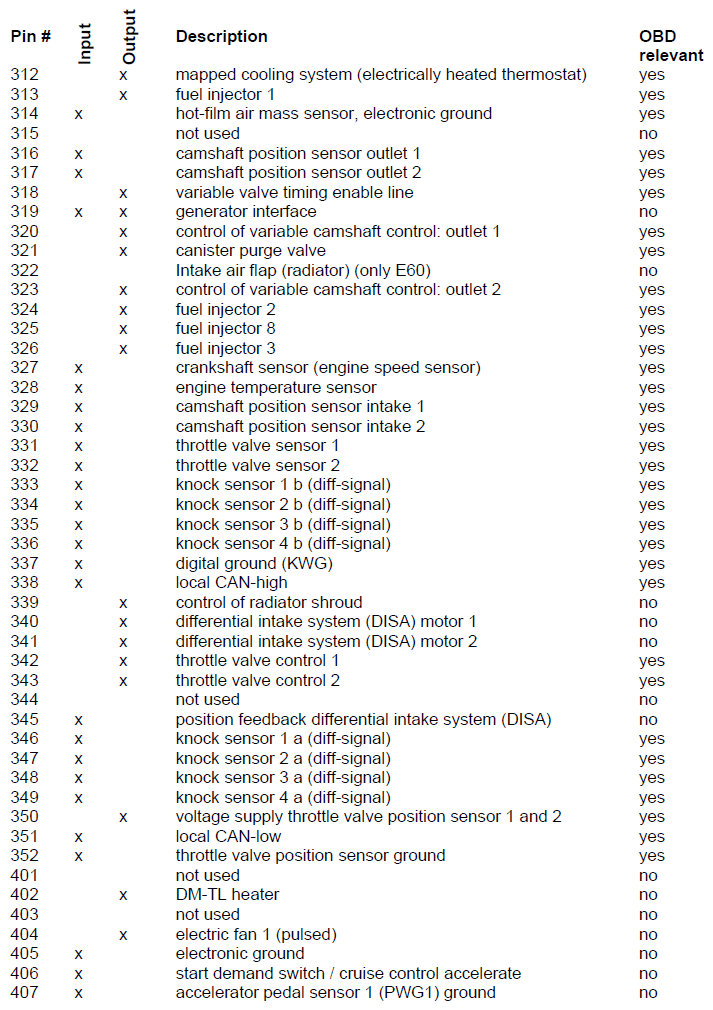

Fig 2: DME Input And Output Signals Chart (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

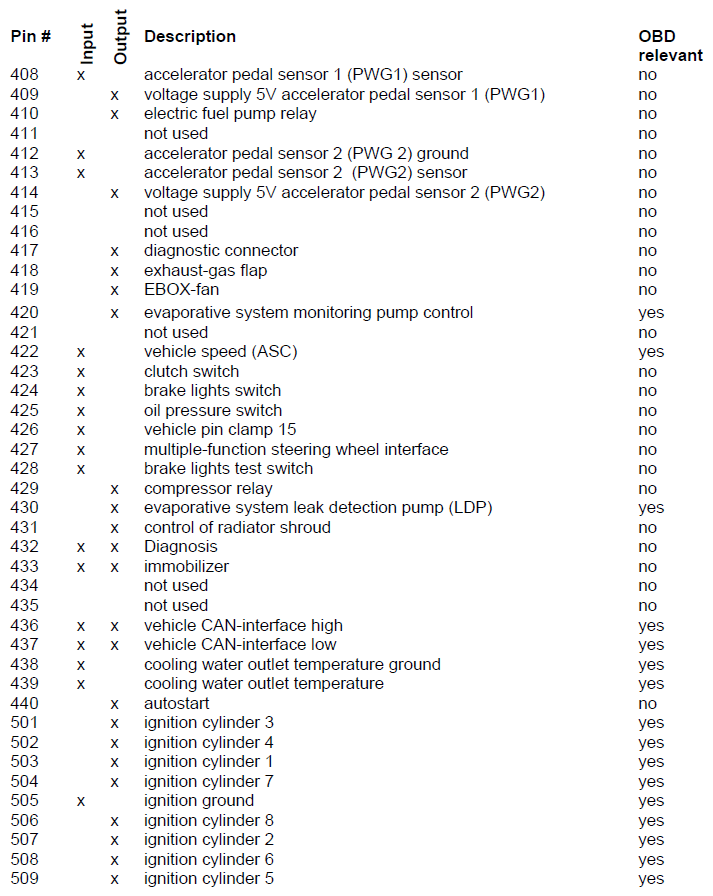

Fig 3: DME Input And Output Signals Chart (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
