1.6.7.2.2 FLS diagnosis frequency of FLS circuit continuity check

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW X6, 2010 BMW 535xi, 2010 BMW 535i, 2010 BMW 135i, and 2009 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

short circuit battery

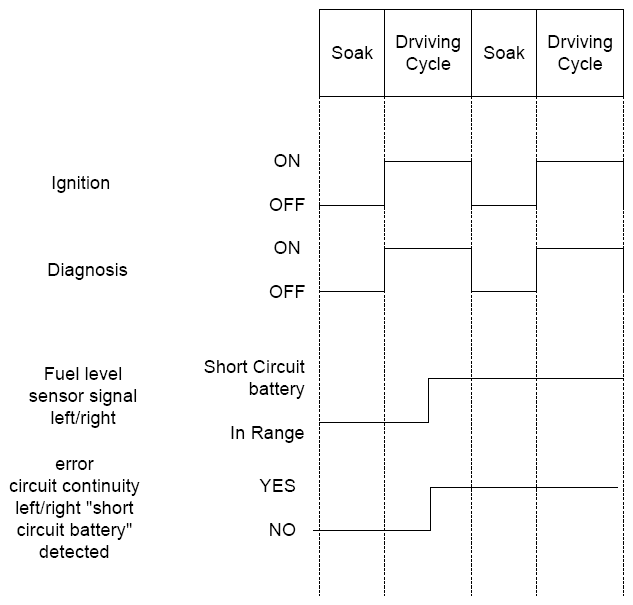

Fig 1: Blinking Pattern Of Fuel Level Sensor - Short Circuit Battery
G06467058Courtesy of BMW OF NORTH AMERICA, INC.

short circuit ground

Fig 2: Blinking Pattern Of Fuel Level Sensor - Short Circuit Ground
G06467059Courtesy of BMW OF NORTH AMERICA, INC.
