1.17.1 Drawing and Location of the Malfunction Indicator Light for following models

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW X6, 2010 BMW 535xi, 2010 BMW 535i, 2010 BMW 135i, and 2009 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

135is, 535i, 535xi

Complete Instrument panel (European Version)

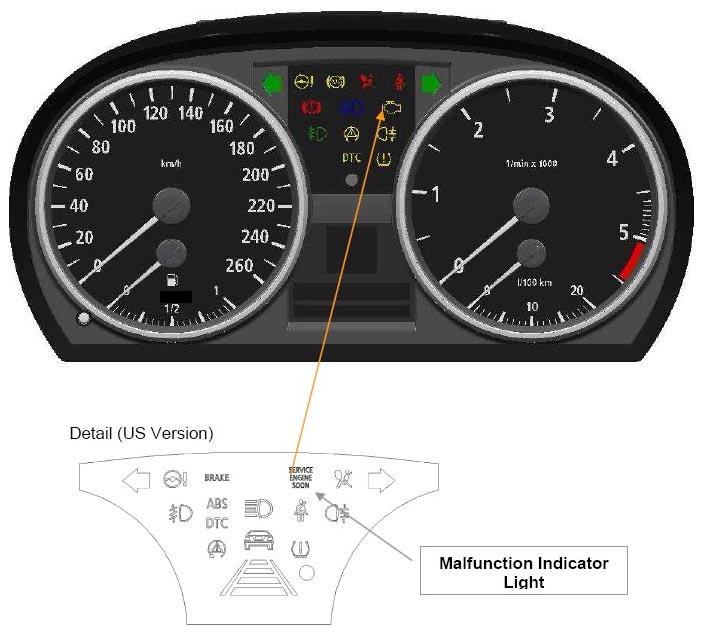

Fig 1: Identifying Malfunction Indicator Light
G06467079Courtesy of BMW OF NORTH AMERICA, INC.
