1.16.2 Location of the Data Link Connector for following models

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW X6, 2010 BMW 535xi, 2010 BMW 535i, 2010 BMW 135i, and 2009 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

535i, 535xi

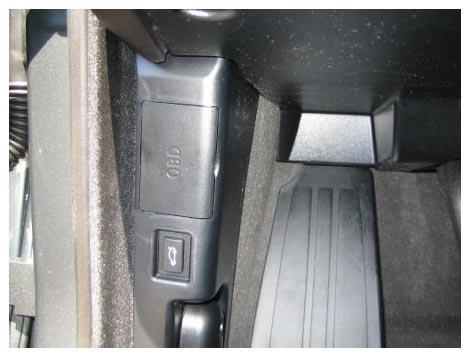

Fig 1: Position DLC For 5 Series Models And Closed Cover
G06467078Courtesy of BMW OF NORTH AMERICA, INC.

The DLC is located at the lower left A-pillar and under a cover. This cover has the letters OBD on it.
