41 00... Frame Alignment Control Body Dimensions
WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
Dimensions in mm. Measurement tolerances:
- ≤ 1000 mm ± 1.5 mm
- ≥ 1000 mm+ 2.5 mm
The control points shown serve to check the body and the straightening attachment.
The specified dimensions/measurements always refer to the centerpoints of the bore/screw.
Under Body View 1

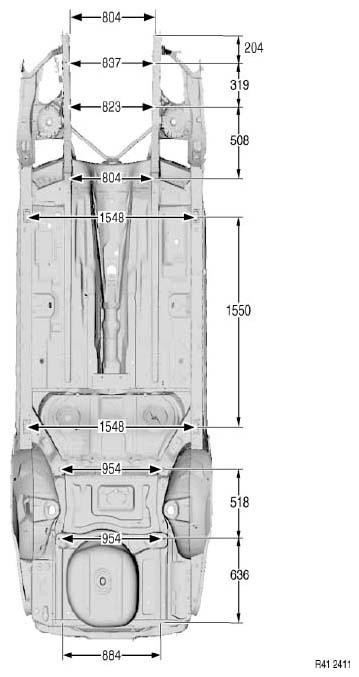

Fig 1: Under Body Frame Alignment Control Body Dimensions And Measurement Points (Under Body View 1)
Under Body View 2

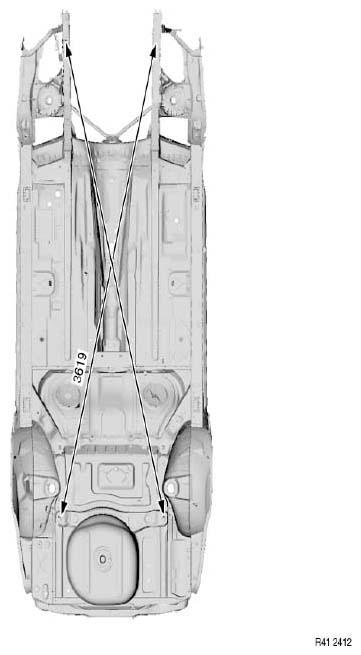

Fig 2: Under Body Frame Alignment Control Body Dimensions And Measurement Points (Under Body View 2)
Top View, Front End

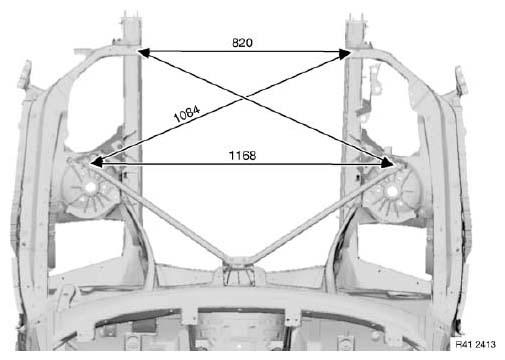

Fig 3: Engine Compartment Frame Alignment Control Body Dimensions And Measurement Points (Top View, Front End)

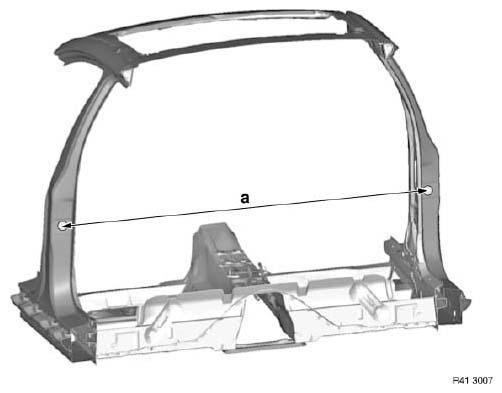

Measurement a = 1549 mm between screw-on points of door brakes.
View, B-pillar
