3200... General chassis and suspension definitions

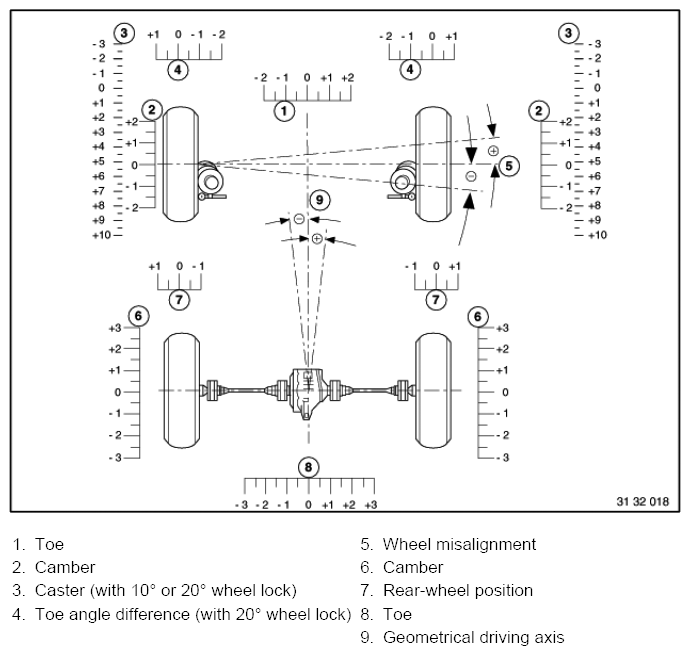

Fig 1: Identifying Chassis And Suspension Definitions

G06854556

Courtesy of BMW OF NORTH AMERICA, INC.
