512190 Minimum set: Mechanical tools MW Adjuster

Note: (Door lock tensioner) For pre-tensioning front and rear door locks when installing. Change to tool through use of noise-optimized locks from 02/2004. Illustration items: 1 = knurled nut 51 2 191 2 = support 51 2 192 3 = protection 51 2 196 4 = mandrel 51 2 197

Storage Location: B44

C44

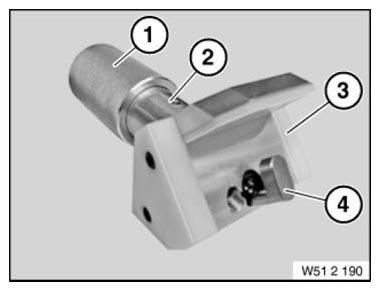

Fig 1: Identifying Adjuster (512190)

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 01 06 02 (864)

Consisting of:

4 = 0494907 Note:

1 = 0494470 Note:

2 = 0494471

2 = 0494472 Note:

2 = 0494473 Note:

2 = 0494474 Note:

3 = 0494906 Note:
