64 22 162 Removing And Installing Or Replacing Middle Fresh-Air Grille
Special Tools Required

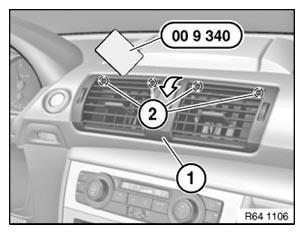

Partially fit special tool 00 9 340 DISASSEMBLY AID (2 PIECES) as shown.
Lever out center fresh-air grille (1) at mounting points (2) and fold back.
Disconnect associated plug connection and remove center fresh-air grille (1).
Replacement:
Remove switch for hazard warning system/central locking
