Special Tools Required

WARNING: This page is about a different variant/trim than selected.

Lever speaker cover (1) with special tool 00 9 340 out of rear shelf (2).

Fig 1: Identifying Speaker Cover, Special Tool 00 9 340 & Rear Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) and locks (2) of speaker cover (3) must not be damaged.

Fig 2: Identifying Lugs, Locks And Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove mid-range speaker (2) upwards from rear shelf (3).

Disconnect associated plug connections and remove mid-range speaker (2).

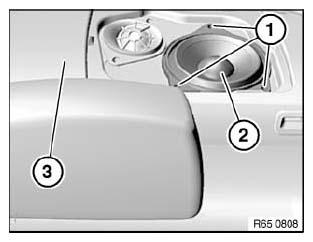

Fig 3: Identifying Screws, Mid-Range Speaker & Rear Shelf

Courtesy of BMW OF NORTH AMERICA, INC.
