65 13 070 Removing and Installing/Replacing Speaker (Mid-Range Speaker In Door Trim Panel At Front)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove front door trim . Refer to 51 41 000 REMOVING AND INSTALLING (REPLACING) FRONT LEFT OR RIGHT DOOR TRIM PANEL (Coupe).
NOTE:
Secure speaker against falling out.

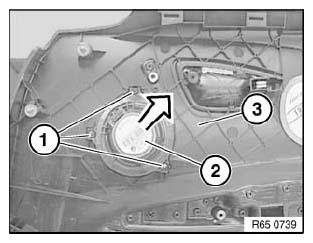

Release nuts (1) and remove speaker (2) in direction of arrow from door trim (3).
Tightening torque, see 65 13 1AZ in 65 13 SPEAKERS .
NOTE:
The studs for the speaker screw connection are microencapsulated.
