65 24 020 Removing and Installing/Replacing Left Or Right Blocking Circuit

Necessary preliminary tasks:

• Remove panel for roof pillar at rear  . Refer to 51 43 251 REMOVING AND INSTALLING OR REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) (Coupe) only.

Disconnect plug connection (1).

Unfasten screw (2) and remove blocking circuit.

Fig 1: Identifying Plug Connection & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

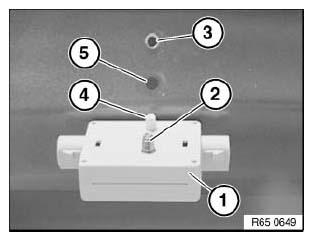

Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).

Fig 2: Identifying Blocking Circuit, Screw, Thread & Locating Pin

Courtesy of BMW OF NORTH AMERICA, INC.
