54 12 180 Removing And Installing/Replacing Inspection Trim For Glass Slide/Tilt Sunroof
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove complete glass slide/tilt sunroof . Refer to 54 12 211 Removing And Installing Complete Glass Slide/Tilt Sunroof .

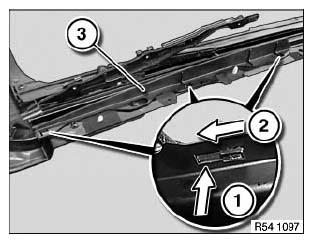

Inspection trim (3) in direction of arrow:
- Raise upwards and unlock
- Slide forwards
Remove inspection trim (3) towards top.
