52 15 050 Removing And Installing/Replacing Thigh Support On Left Or Right Front Seat (Sport/Manual)

WARNING: This page is about a different variant/trim than selected.

Release thigh support (1) and move forward.

Lever welt (3) of seat cover (2) out of thigh support (1).

Fig 1: Identifying Seat Cover Welt Of Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

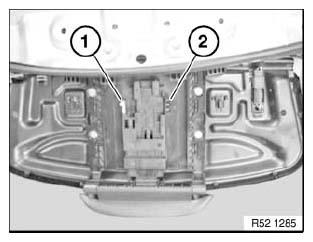

Fig 2: Identifying Centering Element & End Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Do not extend thigh support to its full extent.

Keep actuator (1) pressed in order to unlock centering element (2).

Carefully raise end stop (3) for thigh support with a screwdriver and at same time pull thigh support forwards out of guide rails.

View of thigh support mechanism:

End stop for thigh support
Locking mechanism for thigh support

Fig 3: Identifying Locking Mechanism For Thigh Support
Courtesy of BMW OF NORTH AMERICA, INC.

View of seat frame mechanism:

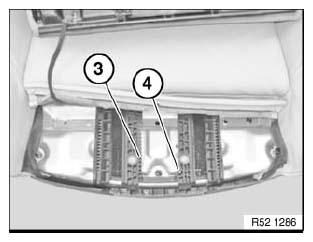

Guide rail on seat with depth arrester
Guide rail on seat with end stop

Fig 4: Identifying Guide Rail On Seat With End Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

NOTE: Check guide rails (2) and adjustment mechanism (3) for damage.

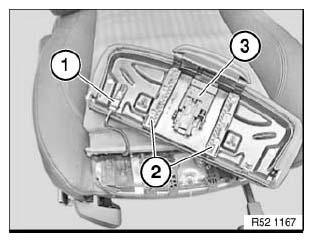

Fig 5: Identifying Guide Rails & Adjustment Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
