52 13 030 Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Unclip cable (2).

Release airbag wiring harness (2) from cable holders on seat mechanism.

Cut through cable ties.

Raise release clip (3) and pull plug (4) out of plug housing (1).

Fig 1: Identifying Release Clip & Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Always feed in cable tie (1) at narrow end of plug housing in direction of arrow.

Cables must be secured with insulation under cable tie.

Firmly tighten cable tie (1) to relieve strain. It must not be possible to move the cable.

Make sure plug (2) is correctly locked in plug housing (3).

Fig 2: Feeding In Cable Tie At Narrow End Of Plug Housing In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unclip cable.

Release wiring harness (3) from cable holders on seat mechanism.

Unfasten plug connection (2) and disconnect.

IMPORTANT: Feed all wiring harnesses carefully through the seat and backrest mechanism as the edges of the frame can be sharp.

Fig 3: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

E92 only:

Unhook seat covers on left and right.

Unclip ball socket (1) from ball head on left and right.

Installation:

Ball socket (1) must snap audibly into place.

Ball socket (1) must be able to move freely on ball head.

Actuate rear catch and remove guide for Bowden cable (2) towards rear with a turning motion.

Fig 4: Identifying Ball Socket And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook backrest cover (1) on left and right.

Release screws (2) on left and right.

Tightening torque, see 52 10 02AZ in 52 10 FRONT SEATS .

Remove backrest frame (3) completely towards top.

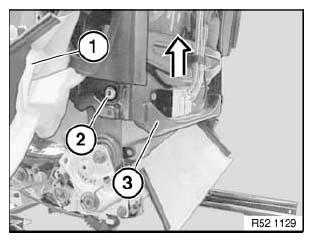

Fig 5: Removing Backrest Frame Completely Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
