Section 3 (Body Equipment - Repair (E82))
>>
Instrument Cluster Trim Panel
>>
51 45... Overview Of Instrument Panel
51 45... Overview Of Instrument Panel
WARNING:
This page is about a different variant/trim than selected.

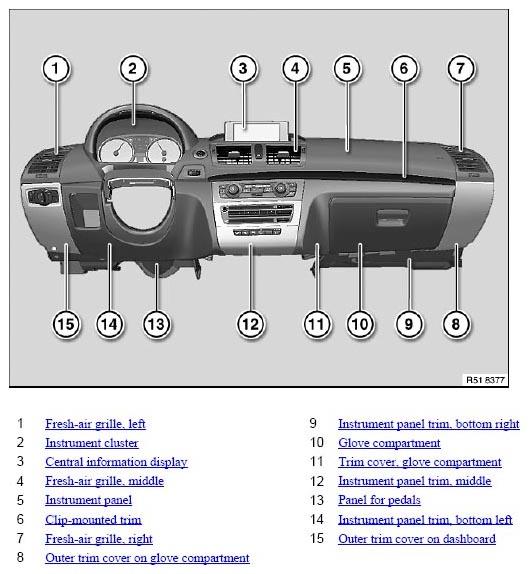

Fig 1: Identifying Instrument Panel Parts Location
Courtesy of BMW OF NORTH AMERICA, INC.
