51 47 491 Removing And Installing/Replacing Rear Underbody Protection

WARNING: This page is about a different variant/trim than selected.

WARNING:

Scalding hazard!

This work may only be carried out on an exhaust system which has cooled down.

Single-part underbody protection (except E90/E91/E92 AWD):

Release screws (1).

Pull underbody protection (2) in direction of arrow out of bracket (3).

Installation:

Ensure correct seating.

Centre underbody protection (2) and tighten down screws (1).

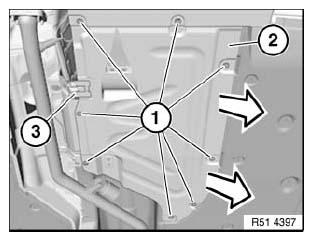

Fig 1: Pulling Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Single-part underbody protection (E90/E91/E92 AWD):

Release screws (1).

Remove underbody protection (2) downwards.

Installation:

Ensure correct seating.

Centre underbody protection (2) and tighten down screws (1).

Fig 2: Identifying Underbody Protection & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Two-part underbody protection

Release screws (1).

Detach underbody protection (2) from bracket (3) and remove.

Installation:

Ensure correct seating.

Centre underbody protection (2) and tighten down screws (1).

Fig 3: Identifying Underbody Protection & Screws

Courtesy of BMW OF NORTH AMERICA, INC.
