41 31 010 Replacing Roof Outer Skin (Version With Slide/Tilt Sunroof)

Read contents of Body, General  . Refer to 41 0 Contents Of Body, General .

Use only approved spot-welding apparatus  for repairs. Refer to 41 00... Workshop Equipment .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Following new body parts are required (refer to Electronic Parts Catalogue ETK):

• (1) Roof outer skin, slide/tilt sunroof
  Fig 1: Identifying Roof Outer Skin, Slide/Tilt Sunroof

  Courtesy of BMW OF NORTH AMERICA, INC.

Release 4 screws (1) in roof channel.

Tightening torque, see 41 31 2AZ in 41 31 ROOF .

Fig 2: Identifying Screws In Roof Channel

Courtesy of BMW OF NORTH AMERICA, INC.

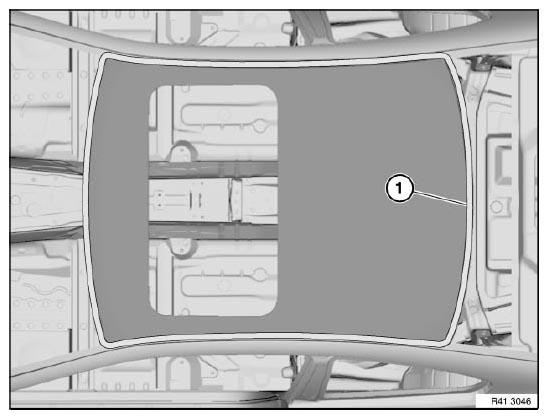

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Release adhesive areas  (layout, see next work steps) and remove roof outer skin. Refer to 41 00... Bonding Steel On Steel .

Installation:

Fit new part on body. Fit windscreen for positioning.

Seal weld seams and screws with sealing compound.

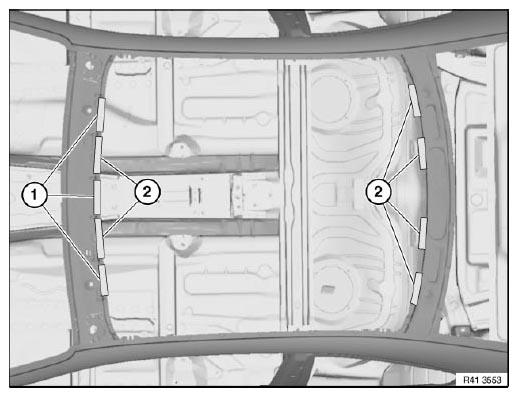

Fig 4: Identifying Sealing Compound Applying Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive in areas (1).

Apply sealing compound in areas (2).
