41 12 560 Replacing Luggage Compartment Floor (Complete With Both Inner Wheel Arch Sections, Tail Panel Removed)

WARNING: This page is about a different variant/trim than selected.

Read contents of Body, General  . Refer to 41 0 Contents Of Body, General .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved spot-welding apparatus  for repairs. Refer to 41 00... Workshop Equipment .

Place vehicle on straightening bench.

Following new body parts are required (refer to Electronic Parts Catalogue ETK):

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cut in accordance with measurement a and cut.

Measurement a= 40 mm behind support, frame side member (1).

Installation:

Weld in reinforcement plates  at severance cuts. Refer to 41 00... Welding In Reinforcement Plate (Steel Plate) .

Fig 2: Identifying Frame Side Member
G04726850Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cut (1) and cut.

Open weld joints in areas (2).

Installation:

Weld new components in areas (3) additionally.

Fig 3: Identifying Weld Joints Areas
G04726851Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cut (1) in accordance with measurement a and cut rear axle carrier.

IMPORTANT: Cut outer metal sheet only.

Measurement a= 70 mm from rear axle bushing mounting.

Open weld joints in area (2).

Installation:

Weld in reinforcement plates  at severance cuts. Refer to 41 00... Welding In Reinforcement Plate (Steel Plate) .

Fig 4: Identifying Weld Joints Area
G04726852Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in area (1).

Installation:

Weld new components in area (2) additionally.

Fig 5: Identifying Weld Joints Area
G05778802Courtesy of BMW OF NORTH AMERICA, INC.

Coupe only:

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in area (1).

Installation:

Weld new components in area (2) additionally.

Fig 6: Identifying Weld Joints Area
G05778803Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1) and (2).

Fig 7: Identifying Weld Joints Areas
G04726856Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in area (1).

Installation:

Weld new component in areas (2) additionally.

Fig 8: Identifying Weld Joints Area
G04726857Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Fig 9: Identifying Weld Joints Area
G04726858Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cuts (1) in accordance with measurement and cut.

IMPORTANT: Cut outer metal sheet only.

Measurement a = 170 mm

Measurement b = 110 mm

Fig 10: Marking Severance Cuts In Accordance With Measurement
G04726859Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The parts separated by cutting are still needed.

Weld in reinforcement plates  at severance cuts. Refer to 41 00... Welding In Reinforcement Plate (Steel Plate) .

Preparation of new part:

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (2).

Installation:

The parts separated by cutting are still needed.

Fig 11: Identifying Weld Joints Areas
G04726860Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints in areas (1).

Mark severance cut (2) in accordance with vehicle and cut.

Fig 12: Identifying Weld Joints Areas
G04726861Courtesy of BMW OF NORTH AMERICA, INC.

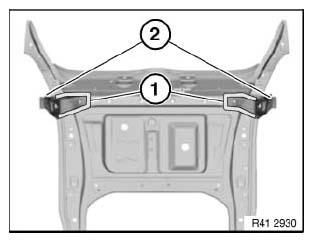

Preparation of new part:

Open weld joints in areas (1).

Installation:

The parts (2) separated by cutting are still needed.

Fig 13: Identifying Weld Joints Areas
G04726863Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints in area (1).

Mark severance cut (2) in accordance with vehicle and cut.

Fig 14: Marking Severance Cut In Accordance With Vehicle
G04726864Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust new parts to fit with straightening attachment or universal mount.

Before welding in, also adjust tail panel, rear lid and rear lights to fit.

Weld new components in following order:

Installation:

For reasons of accessibility, the repair joining sequence differs from the standard joining sequence.

Fit new component from above in area (1), adjust to fit and weld.

Fig 16: Identifying Weld Joints Area
G04726866Courtesy of BMW OF NORTH AMERICA, INC.
