41 61 014 Adjusting Engine Bonnet/Hood

WARNING: This page is about a different variant/trim than selected.

Read contents of Body, General . Refer to 41 0 Contents Of Body, General .

The specified gap dimensions serve as the basis for adjustment tasks. Refer to 41 00... BODY GAP DIMENSIONS

Make unpainted surfaces visible by also moving the hinges.

Touch these up in the appropriate color.

NOTE: Carry over schematic representation to the relevant vehicle type.

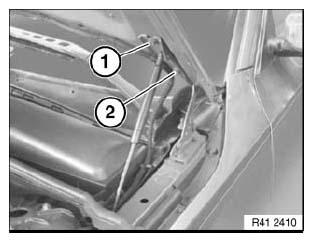

Loosen screws (1) and (2) on left and right hinges.

Hood lid must be able to be moved.

NOTE: If the adjustment range is not sufficient, release retaining screws of engine hood hinge on body and move hinge.

Fig 1: Identifying Screws On Left & Right Hinges

Courtesy of BMW OF NORTH AMERICA, INC.

Locks and retaining hook must snap correctly into place.

Adjust engine hood.

NOTE: Vertical adjustment of engine hood to side panel by means of stop pads. Refer to 51 23... ADJUSTING/REPLACING BUMP STOPS

Fig 2: Adjusting Engine Hood

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Height adjustment of bonnet to front wall:

Release screw (1) and remove cover (2).

Height adjustment by turning at closing hooks (3).
