72 11 170 Replacing Left/Right Belt Deflector

Installation:

• Microencapsulated screws (Loctite) must be replaced and may not be reused
• Screw connection must be completed within 20 minutes (start of curing)
• Microencapsulated screws must not be retightened
• Clean thread of nut beforehand in event of repeated use

Necessary preliminary tasks:

• Open convertible top
• Fold backrest forward

Lever out cap (1). Release screw (2). Tightening torque: 72 11 05AZ in 72 11 SEAT BELTS . Separate webbing. Installation:  Check that spacer bushing (3) and rubber ring (4) are in correct position. Seat belt strap must not be twisted!

Fig 1: Identifying Spacer Bushing And Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim (1) for belt deflector with a suitable tool.

Fig 2: Identifying Belt Deflector Trim

Courtesy of BMW OF NORTH AMERICA, INC.

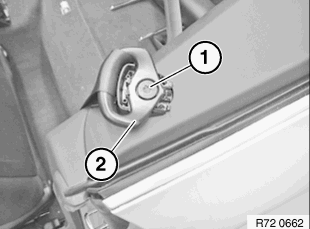

Release screw (1). Tightening torque: 72 11 03AZ in 72 11 SEAT BELTS . Remove belt deflector (2). Installation:  Coding of belt deflector must be seated in body recess.

Fig 3: Removing Belt Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

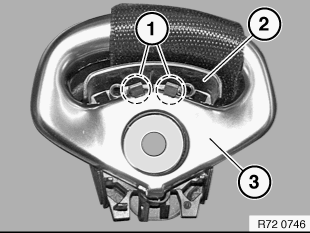

Carefully unlock retaining lugs (1).. Remove cover (2) from belt deflector (3).

Fig 4: Removing Cover From Belt Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

Feed belt lock (1) through belt deflector (2) as shown. Feed belt deflector (2) completely out of seat belt strap.

Fig 5: Feeding Belt Lock Through Belt Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

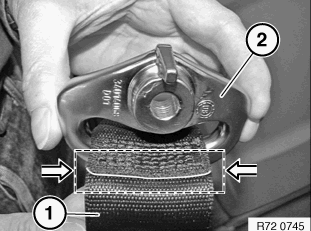

Installation:  Feed seat belt strap (1) in replacement belt deflector (2) as shown.

Fig 6: Feeding Belt Strap In Belt Deflector

Courtesy of BMW OF NORTH AMERICA, INC.
