63 99 451 Replacing Light Bulb For Luggage Compartment Lighting

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (interior lights) . Refer to 63 99 ... Instructions For Replacing Light Bulbs (Interior Lights) .

Necessary preliminary tasks:

Remove luggage compartment light . Refer to 63 31 080 Removing And Installing/Replacing Luggage Compartment Light .

Version A:

Move lens cover (1) in direction of arrow and remove.

Remove festoon (2) underneath.

Installation:

Note type of bulb.

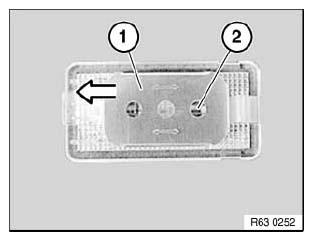

Fig 1: Identifying Festoon & Lens Cover

G04727787

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Release lens cover (1) at latch mechanisms (2) on both sides.

Remove lens cover (1) from luggage compartment light (3) in direction of arrow.

Fig 2: Removing Lens Cover From Luggage Compartment Light

G00526756

Courtesy of BMW OF NORTH AMERICA, INC.

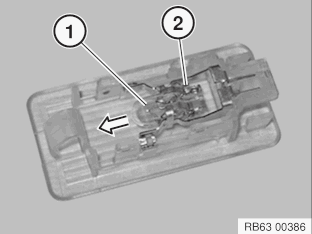

Push bulb (1) out of socket with a suitable tool (e.g. screwdriver 3 mm blade) in direction of arrow and remove.

Fig 3: Pushing Bulb Out Of Socket

G00526757

Courtesy of BMW OF NORTH AMERICA, INC.

Check headlight lens cover (1) before fitting. If necessary, carefully press together both side tabs a little in direction of arrow.

Fig 4: Checking Headlight Lens Cover Before Fitting

G00526758

Courtesy of BMW OF NORTH AMERICA, INC.
