63 99 445 Replacing Bulb(s) For Mirror Light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (interior lights)  . Refer to 63 99 ... Instructions For Replacing Light Bulbs (Interior Lights) .

Necessary preliminary tasks:

Expand bow contacts (1) and remove bulb for mirror light.

Installation:

Note type of bulb.

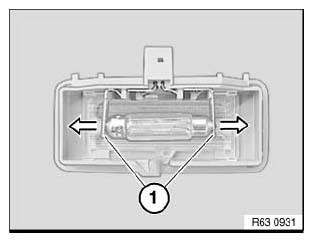

Fig 1: Removing Bulb For Mirror Light
G04727786Courtesy of BMW OF NORTH AMERICA, INC.
