Special Tools Required

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

64 1 020 RELEASE HOOK

IMPORTANT: Follow instructions for handling light bulbs (interior lights) . Refer to 63 99 ... Instructions For Replacing Light Bulbs (Interior Lights) .

Lever footwell light (1) with special tool 64 1 020 in direction of arrow out of bottom right instrument panel trim.

Disconnect associated plug connection and remove footwell light (1).

Replacement:

If necessary, remove bulb . Refer to 63 99 437 Replacing Light Bulb For Footwell Light .

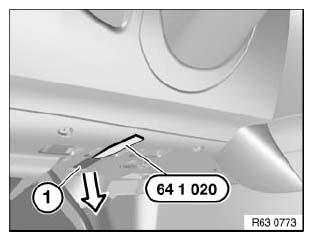

Fig 1: Identifying Lever Footwell Light With Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.
