34 35 001 Replacing a brake pad sensor (front)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
If a brake pad sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the ground sliding contact.
If a brake pad sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the ground sliding contact.
Necessary preliminary tasks:
- Remove wheel . See WHEELS .
Open plug housing (1).
Disconnect plug connection (2).
Feed brake pad sensor out of holders (3).

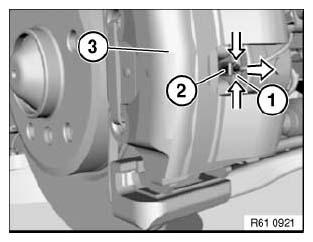

Press clip (1) together and detach brake pad sensor (2) in direction of arrow from brake pad (3).
Installation:
Make sure clip (1) and brake pad sensor (2) are correctly seated in brake pad (3).
