33 41... Detaching wheel bearing inner race from drive flange (drive flange removed
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 33 1 307
- 33 4 400
- 33 4 401
- 33 4 402
- 33 4 403
- 33 4 404
- 33 4 405
- 33 4 406
- 33 4 407
NOTE:

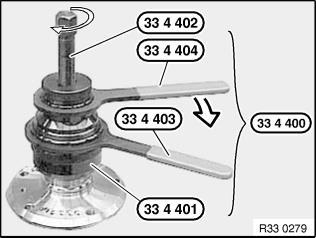

Detach wheel bearing ring with special tool 33 4 400 through groove in wheel bearing inner ring.
Position special tool 33 1 307 on drive flange.

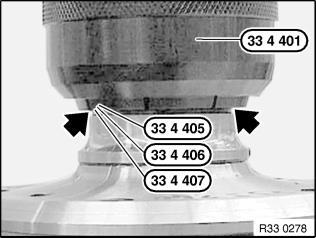

Select one of the following special tools using the wheel bearing inner ring and insert into special tool 33 4 401. 33 4 405 for dia. 45 - 51 mm 33 4 406 for dia 50 - 55 mm 33 4 407 for dia. 55 - 61 mm
Screw out special tool 33 4 402 until the tapered attachment of the spindle comes into contact with the special tool33 4 401. Position special tool 33 4 401 with the corresponding insert on groove of wheel bearing inner ring.
Compress special tool 33 4 401 with wrenches 33 4 403 and33 4 404 until the special tool can still be turned in the groove.
Detach wheel bearing inner ring by turning special tool 33 4 402.
