33 11... Replacing rear cover gasket on rear differential (215L / 215LW)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
To avoid leaks from the rear differential cover, do not use a paper gasket in cars with liquid gaskets!
To prevent the differential oil from foaming over, make sure that no remnants of the liquid gasket are pressed into the rear differential housing.
To prevent the differential oil from foaming over, make sure that no remnants of the liquid gasket are pressed into the rear differential housing.

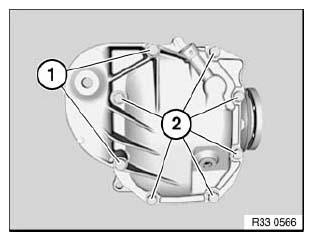

Unscrew screws (1) and (2).
See Tightening torque 33 11 1AZ (M10x75) in 33 11 REAR DIFFERENTIAL CASE WITH COVER .
See Tightening torque 33 11 1AZ (M10x25) in 33 11 REAR DIFFERENTIAL CASE WITH COVER .
Remove cover.
If necessary, remove remnants of liquid gasket with scraper.
Clean sealing face on cover and rear differential.
Installation:
If a paper gasket was fitted, a paper or liquid gasket can be used.
