24 00 018 Adjusting Selector Lever (GA6L45R)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check cable for ease of movement.
Move selector lever to "P" position.

Grip clamping sleeve (1).

Slacken nut (2).

Press selector lever (3) forwards into park position. Press cable (4) in direction of arrow and release again.

Grip clamping sleeve (1).

Tighten down nut (2).

Tightening torque . See 25 16 2AZ in 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .

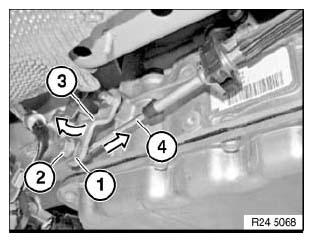

Fig 1: Pressing Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Move selector lever to "P" position.

Check whether parking gear is engaged by turning propeller shaft.
