22 31 001 Replacing Rubber Mount For Transmission Mounting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear underbody protection.
- Support transmission with lifter.
Remove screws and nuts.

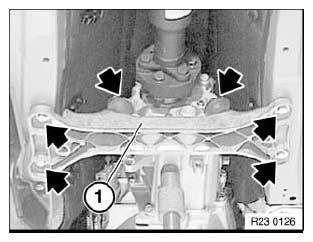

Remove transmission crossmember (1).
Remove rubber mount from transmission crossmember.
Tightening torque. See 22 32 3AZ/4AZ in 22 32 TRANSMISSION MOUNTS .
