21 52 500 Removing And Installing/Replacing Clutch Master Cylinder

Necessary preliminary tasks:

• Remove trim panel  for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING PANEL FOR PEDALS .

Unclip retaining tabs (1).

Pull cover (3) out of guide (2) and remove.

Fig 1: Identifying Retaining Tabs, Cover And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Draw off brake fluid up to supply hose of clutch hydraulic system (1). For this purpose, use only a vacuum pipe that is exclusively used for removing brake fluid.

Detach supply hose (1) from expansion tank.

Fig 2: Identifying Supply Hose

Courtesy of BMW OF NORTH AMERICA, INC.

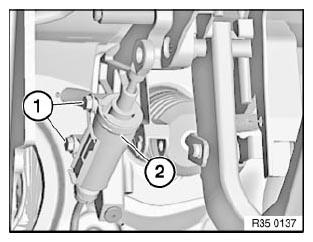

Release screws (1) on cylinder (2).

Tightening torque. See 21 52 4AZ in CLUTCH - TIGHTENING TORQUES .

Fig 3: Identifying Screws On Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

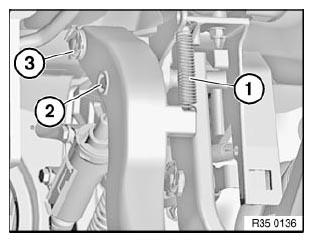

Disconnect return spring (1).

Detach locking clip (3) and pull clutch pedal with clutch master cylinder off bearing block.

Press pin ends (2) together and remove pin.

Installation:

Replace locking clip.

The locking clip must be seated with both legs in the pin groove.

Fig 4: Identifying Return Spring And Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainer (1) with a screwdriver (2).

Detach hydraulic line from clutch master cylinder.

Fig 5: Identifying Hydraulic Line Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Detach supply hose (1) from clutch master cylinder.

Fig 6: Identifying Clutch Master Cylinder Supply Line

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out shift element (1) from clutch master cylinder (2) with screwdriver.

Release plug connection (3) and disconnect plug (4) from shift element (1).

Fig 7: Identifying Clutch Master Cylinder And Shift Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Shift element is secured against incorrect installation.

Shift element must snap audibly into place.

Fig 8: Identifying Shift Element

Courtesy of BMW OF NORTH AMERICA, INC.
