11 9 230 Installer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For RSS into engine block at front

Engine: N40, N42, N43, N45, N45T, N46, N51, N52, N52K, N53, N54

Storage location: C43

SI number: 1 01 01(662)

Order number: 11 9 230 Installer

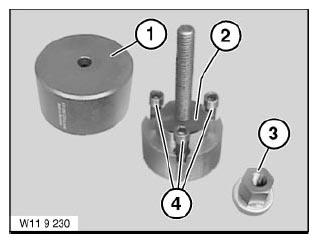

Fig 1: Identifying Installer (11 9 230)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 9 231 Bushing

2 = 11 9 232 Spindle

3 = 11 9 233 Nut

4 = 11 9 234 Screws (3 x)
