11 8 330 Insertion Tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE: For installing and removing conrod with piston

Engine: N42, N43, N45, N45T, N46, N46T, N51, N52, N52K, N53

Storage location: A47, B47

SI number: 1 02 04 (069)

Order number: 11 8 330 Insertion tool

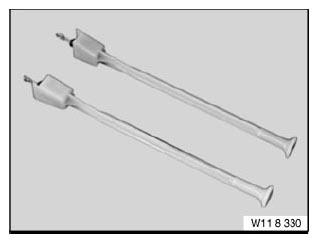

Fig 1: Identifying Insertion Tool (11 8 330)
G04739149Courtesy of BMW OF NORTH AMERICA, INC.
