33 5 010 Spring tensioner

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 128i, and 2009 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 33 5 020

NOTE: For removing and installing spring on rear axle.

Series: E81, E82, E87, E88, E90, E91, E92, E93

SI number: 1 15 04 (117)

Order number: 33 5 010 Spring tensioner

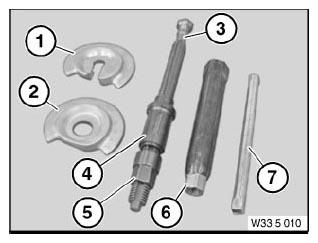

Fig 1: Identifying 33 5 010 Spring Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 5 011 Spring plate, top

2 = 33 5 012 Spring plate, bottom

3 = 33 5 013 Spindle

4 = 33 5 015 Nut

5 = 33 5 016 Tubular hexagon box wrench WAF 24

6 = 33 5 017 Tubular hexagon box wrench WAF 10
